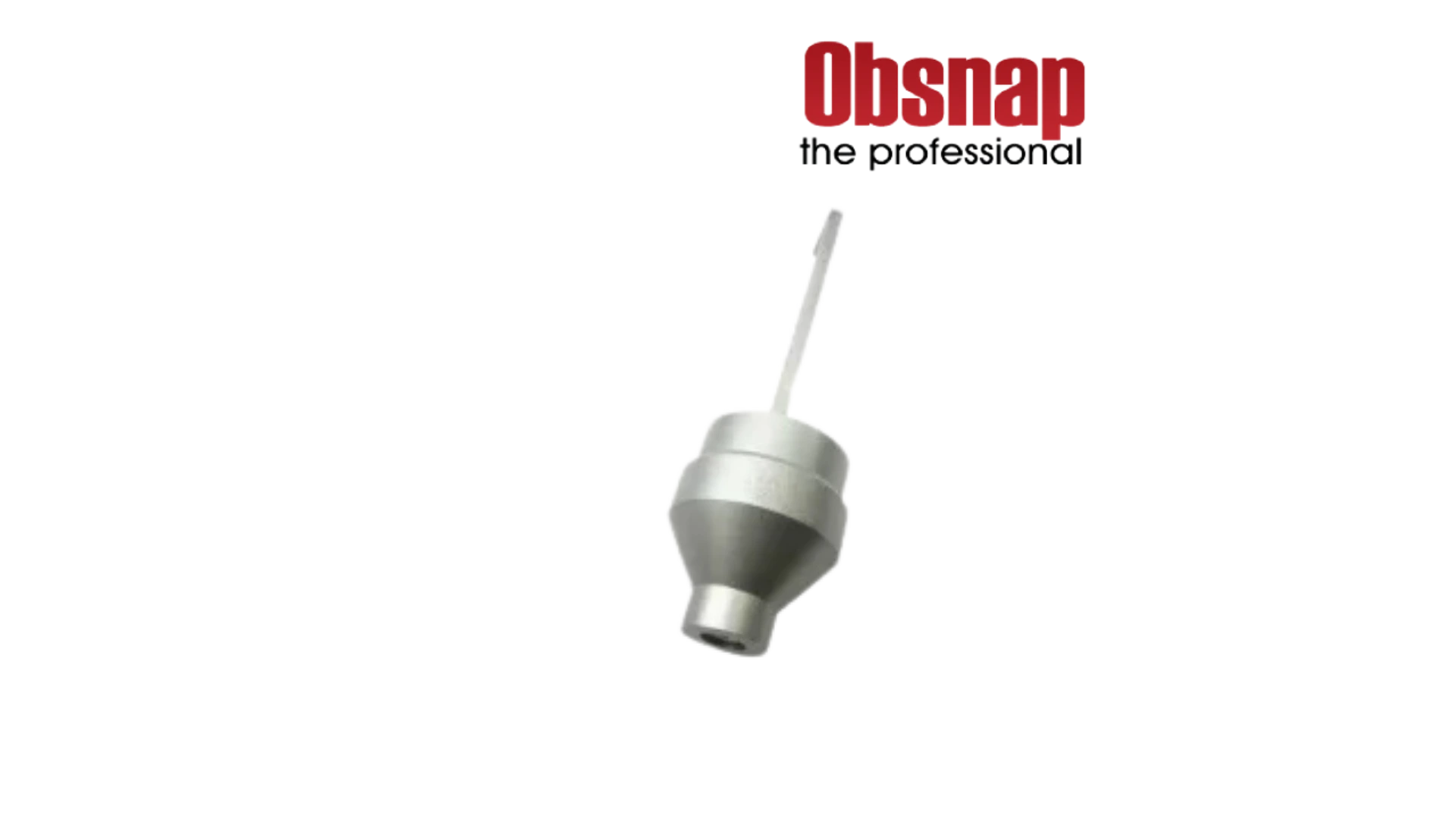

TQC sheen – Viscosity Cup DIN 53211 Immersion
The TQC Viscosity Cup DIN 53211 Immersion is a range of titanium anodized aluminum or stainless steel viscosity cups with fixed stainless steel (SS303) nozzle (inner cavity) and handle. Inner dimensions similar to DIN 53211. Ideal for measuring coatings and other fluids during application or production.
Features:
- Each cup has a long loop handle to allow the cup to be dipped by hand into a liquid container, which makes it easy to quickly check and adjust the viscosity of many different type of liquids.
- The design of the cup and orifice eliminate hard to clean recesses. TQC viscosity cups are made under the continuing quality control procedures.
- Each cup is provided with an engraved unique serial number.
- Each viscosity cup comes with a hard plastic storage case, with protective soft material on the inside.
Specifications:
Immersion Viscosity Cup Type TA
| Cup | Titanium anodized aluminum, 100cc |
| Nozzle | Stainless steel, fixed |
| Handle | Stainless steel |
| Comp with | DIN 53211(No.4) |
| Weight | 176 – 179 g* |
| Cup height | 74mm |
| Max width | 63mm |
| Total height | 250mm |
Immersion Viscosity Cup Type TFR
| Cup | Stainless steel, 100cc |
| Nozzle | Stainless steel, fixed |
| Handle | Stainless steel |
| Comp with | DIN 53211(No.4) |
| Weight | 447 – 450 g * |
| Cup height | 74mm |
| Max width | 63mm |
| Total height | 250mm |
ORDERING INFORMATION
Art. No. VF2071
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: made of titanium anodised aluminum, with fixed nozzle orifice Ø 2 mm
Art. No. VF2072
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: made of titanium anodised aluminum, with fixed nozzle orifice Ø 3 mm
Art. No. VF2073
TQC Viscosity Cup DIN 53211 Immersion
Type: made of titanium anodised aluminum, with fixed nozzle orifice Ø 4 mm
Optional: possible to certify by calibration with certified oils
Art. No. VF2074
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: made of titanium anodised aluminum, with fixed nozzle orifice Ø 5 mm
Art. No. VF2075
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: made of titanium anodised aluminum, with fixed nozzle orifice Ø 6 mm
Art. No. VF2077
TQC Viscosity Cup Immersion (Similar to DIN 53211) Type: made of titanium anodised aluminum, with fixed nozzle, orifice Ø 8 mm
Art. No. VF2213
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: made of stainless steel, with fixed nozzle orifice Ø 2 mm
Art. No. VF2215
TQC Viscosity Cup DIN 53211 Immersion
Type: made of stainless steel, with fixed nozzle orifice Ø 4 mm
Optional: possible to certify by calibration with certified oils
Art. No. VF2216
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: made of stainless steel, with fixed nozzle orifice Ø 5 mm
Art. No. VF2217
TQC Viscosity Cup Immersion (Similar to DIN 53211)
Type: made of stainless steel, with fixed nozzle orifice Ø 6 mm
