TQC sheen – Adhesion Testers – Cross Cut Adhesion Tester – Cross Cut Adhesion Test Basic Cutter

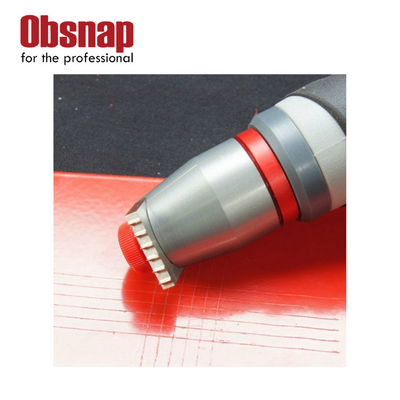

The TQC Cross Cut Adhesion Test Basic Cutter is used to test the adhesion of dry coats of paint on their substrate by means of a series of cuts through the coating. Two series of parallel cuts cross angled to each other to obtain a pattern of 25 or 100 similar squares. The ruled area is evaluated by using a table chart after a short treatment with a stiff brush, or adhesive tape for hard substrates.

The cutting knife of the TQC Cross Cut Adhesion Test Basic Cutter is easy to exchange without the use of extra tools. The self positioning knife bracket of the TQC Cross Cut Adhesion Test Basic Cutter ensures equal pressure on the cutting knife.

Each TQC Cross Cut Adhesion Test Basic Cutter contains a grip with cutter.

Category: Paint Strength Testers

Description

Features:

Self-adjusting knife-holder ensures equal pressure on the cutting knife
Ergonomically shaped handle
Easy to change cutting knife, no extra key needed
Wide range of knife sizes available for different coating thicknesses and substrates and according to different standards

ORDERING INFORMATION

Art. No. SP1660
TQC Cross Cut Adhesion Test Basic Cutter, 6 blades, cutting distance 1 mm
Acc. to ISO 2409 & ASTM D3359

Art. No. SP1661
TQC Cross Cut Adhesion Test Basic Cutter, 6 blades, cutting distance 2 mm
Acc. to ISO 2409 & ASTM D3359

Art. No. SP1662
TQC Cross Cut Adhesion Test Basic Cutter, 6 blades, cutting distance 3 mm
Acc. to ISO 2409

Art. No. SP1663
TQC Cross Cut Adhesion Test Basic Cutter, 11 blades, cutting distance 1 mm
Acc. to ASTM D3359 <2009

Art. No. SP1664
TQC Cross Cut Adhesion Test Basic Cutter, 11 blades, cutting distance 1.5 mm
Acc. to ASTM D3359 <2009
