TQC sheen – Abrasion Testers – TABER OSCILLATING ABRASION TESTER

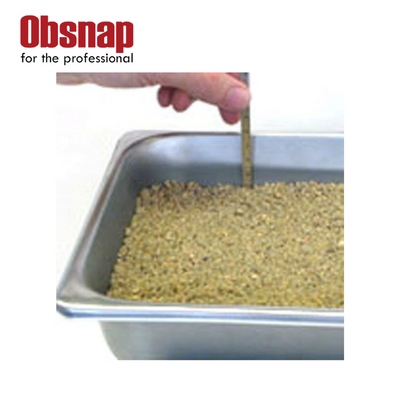

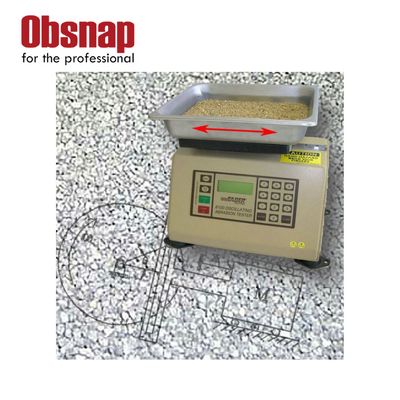

Rigid specimens that are 100mm square and less than 12.5mm in thickness are mounted in a holder located in the bottom of a sand tray so the surface is flush within 1mm.  The tray is filled to a uniform depth (e.g 12.5mm) with a standardized abrasive media such as quartz silica or alumina.  A scotch-yoke drive system reciprocates the tray in a back-and-forth (to-and-fro) motion which causes the entire mass of the abrasive media to shift significantly within the tray.  The oscillating movement of the abrasive media results in a random pattern of scratches which simulates normal everyday wear.

Test parameters can be altered with Taber’s Oscillating Sand Abrasion Tester, and allow the operator to select the operating stroke length (6.5 to 150 mm) and speed (variable from 100 – 200 cycles per minute).  ASTM F735 specifies the sand tray travels a distance of 100mm at a speed of 300 strokes per minute (150 cycles per minute).

Using a custom specimen holder (not supplied), materials of various shapes may also be tested.  To generate useful data, it is important to recognize that the amount and force of abrasive media that contacts the specimen surface will change based on the curvature of the part.  Specimens with a severe contour may inhibit the movement of the abrasive media during the test.
