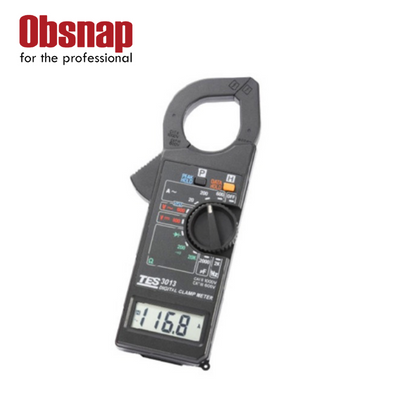

TES Digital Clamp Meter TES-3013/TES-3014
TES-3013 / TES-3014
Digital Clamp Meter
Product Features
-
Category: CAT II 1000V , CAT III 600V
-
Capacitance measurement 2000µF.
-
Variable-frequency drive VFD voltage & Current measurement.
-
ACA: 600A (3013), 1000A (3014)
-
Peak / Data Hold.
-
Frequency Count / Diode Check.
-
Continuity Buzzer.
Description
ELECTRICAL SPECIFICATION:
AC Current
|
Range
|
Resolution
|
Accuracy (50Hz/60Hz)
|
Overload Protection
|
|
20A
|
10mA
|
±(2%rdg + 5dgts)
|
1000A(Within 30 seconds)
|
|
200A
|
100mA
|
||
|
600A. 1000A
|
1A
|
DC Voltage
|
Range
|
Resolution
|
Accuracy
|
Input Impedance
|
Overload Protection
|
|
600V
|
1V
|
±(0.8%rdg + 2dgt)
|
10MΩ
|
600V
|
AC Voltage
|
Range
|
Resolution
|
Accuracy
|
Input Impedance
|
Overload Protection
|
|
600V
|
1V
|
±(1.2%rdg + 3dgts) at 50, 60Hz
±(5%rdg + 3dgts) at 40 ~ 400Hz
|
10MΩ
|
600V
|
Resistance (Ω)
|
Range
|
Resolution
|
Accuracy
|
Max. Open Circuit Voltage
|
Overload Protection
|
|
200Ω
|
100mΩ
|
±(1%rdg + 2dgts)
|
3.5V
|
600V
|
|
20kΩ
|
10Ω
|
0.3V
|
Frequency (Hz) (10Hz-2KHz)
|
Range
|
Resolution
|
Accuracy
|
Max. Input Sensitivity
|
Max. Allowable Applied Voltage
|
|
2kHz
|
1Hz
|
±(1%rdg + 2dgts)
|
100mVrms
|
600V
|
Diode (
)
)|
Range
|
Resolution
|
Max. Test Current
|
Max. Open Circuit Voltage
|
Over Voltage Protection
|
 |
1mV
|
1.5mA
|
3.5V
|
600V
|
Continuity (BEEPER)
|
Range
|
Resolution
|
Operation Resistance
|
Max. Open Circuit Voltage
|
Over Protection
|
 |
0.1Ω
|
Below 100Ω
|
3.5V
|
600V
|
Capacitance (μF)
|
Range
|
Resolution
|
Accuracy
|
Max. Open Circuit Voltage
|
Over Protection
|
|
2000μF
|
1μF
|
±(5%rdg + 2dgts)
|
3.5V
|
600V
|
Peak Hold Measurement (23℃±5℃Below 80% RH)
AC Current
|
Range
|
Resolution
|
Accuracy (50Hz 60Hz)
|
Overload Protection
|
|
20A
|
10mA
|
±(2%rdg + 10dgts)
|
1000A
(Within 30 seconds)
|
|
200A
|
100mA
|
||
|
600A, 1000A
|
1A
|
AC Voltage
|
Range
|
Resolution
|
Accuracy(50Hz 60Hz)
|
Input Impedance
|
Overload Protection
|
|
600V
|
1V
|
±(1.5%rdg + 8dgts)
|
10MΩ
|
600V
|
GENERAL SPECIFICATION:
* Operating Temperature: 0°C~40°C, 0-80% RH.
* Operating Temperature: 0°C~40°C, 0-80% RH.
* Sampling Rate: 2.5 times per second.
* The time of peak Value Response: about 100ms.
* Power Source: 006P DC 9V 1pc.
* Size & Weight: 208mm×65mm×31mm & 310g.
* Accessories: Test probe 1 pair, Instruction Manual,
Carrying Case, Battery.
