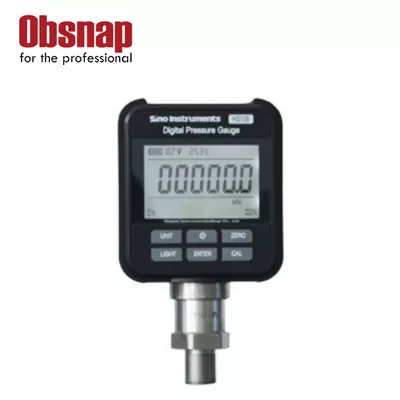

Sino HS108 Digital Pressure Gauge

The HS108 Digital Pressure Gauge is a lightweight, high-accuracy test gauge. With advanced state-of-the-art silicon pressure sensors and microprocessor technology, the HS108 provides an accurate, dependable, and cost-effective solution for pressure applications in power, chemical, petroleum, metallurgy, metering, and other industries.
Every HS108 digital pressure gauge has undergone high and low-temperature aging to ensure that the products are more accurate and reliable.

(-1-0)bar, (0-2500)bar pressure range (Any range between these two)
Accuracy:0.025% F.S;0.05% F.S; 0.1% F.S

Categories: Portable Inspection Gauges, Pressure Calibrator

Description

Technical specification
◆ Accuracy:±0.025% F.S , ±0.05% F.S , ±0.1%F.S,
◆ Pressure range: (-1-0)bar, (0-2500)bar (any range within these two ranges).
◆ Work medium: Oil, water& noncorrosive gases.
◆ Over pressure alarm function
◆ 6 digits big LCD with blacklight
◆ Pressure unit: Pa, kPa, MPa, psi, bar, mbar, kgf/cm2,mmH2O , mmHg
◆ Compensated temperature:( 0- 50)°C
◆ Pressure Connection:M20*1.5, or 1/4”NPT male thread(or customized)
◆ Battery: One piece 7.4V lithium and special charger, Battery using life: 80 hours
◆ Case material: ABS Plastic
◆ Communication: RS232
◆ Dimensions:Φ95mmx49mm. Total Height:166mm
◆ Weight:0.75kg

Features
◆ Pressure ranges to 2500 bar
◆ High accuracy up to ±0.025%F.S
◆ Nine selectable pressure units
◆ Advanced temperature compensation: 0°C to 50°C
◆ Large, easy to read with 6-digit resolution
◆ % Pressure indication with bar graph
◆ Backlight and RS232 serial interface
◆ 7.4V Rechargeable battery or AC adapter
◆ Max/Min values function
◆ CE Approval

Sino HS108 Digital Pressure Gauge
