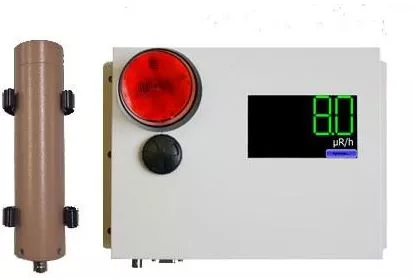

Radiation Area Monitor – AM-2X2 Radiation Area Monitor

One of the most user-friendly, comprehensive, and cutting-edge radiation area monitors on the market is the Radiation Alert® Area Monitor. An clever resistive touch screen display with a large five digit LED readout serves as the user-friendly interface.

An external Sodium Iodide Scintillation Detector is included with the AM-2X2. available probes for cesium iodide. For areas with a lot of traffic, rugged wall-mount enclosure choices are available. Use the free software to keep an eye on each Radiation Alert® Area Monitor on your network. includes user-selectable warning indications for detector failure, low and high radiation alarm levels, and low battery. In order to get alarms while travelling, set up email and SMS alerts. Even in the event of a power outage, all settings are retained inside. The Certificate of Conformance is included with every unit. On demand NIST Source calibrations are available.

Category: Assembly Systems

Description

Applications & Uses: Room monitoring for Hospitals, X-Ray machines, Accelerators, Laboratories, etc. Portal monitoring, such as doors and walkways, Source monitoring, Alarms in the presence of radiation or the absence of sources

Detector

2X2 Nal(Tl) Scintillation Probe

Sensitivity

>90,000 CPM/mR/hr (137 Cs)

Operating Range

0.1 µR/hr to 2 mR/hr (0 – 20 µSv/hr)

Custom Probe Options Available. Tell us about your application and we can recommend the best probe options for your needs.

Touch Screen Display

4.3 inch TFT 480×272 touch screen display with user friendly Programmable Units of Measurement and Audio and Visual Alarms. 5-digit LED display with 2.5 cm (1 in.) character height. 65K true colors capable of displaying full color images, animations, icons, and video clips

Display Units

Can display in R/hr, mR/hr, KR/hr, Sv/hr, mSv/hr, Sv/hr, cpm, Kcpm, cps, Kcps, and others

Energy Range

30 KeV – 2 MeV

Linearity

NIST Calibrated readings within 10% of true value with detector connected

Response

Varies automatically from 20 seconds to 2 seconds

Calibration Controls

Functions accessible through touch screen push button under calibration cover enables secure access to changing settings

Dead Time

User adjustable to compensate for dead time of the detector and electronics

Indicators

Ultra-Bright Strobe and Audible Alarm
Can trigger up to three relays with DB-9 serial connection
USB VCP for computer data logging, can also be used to control the unit with use of remote software for alarm indication and acknowledgment (Silence by remote)
