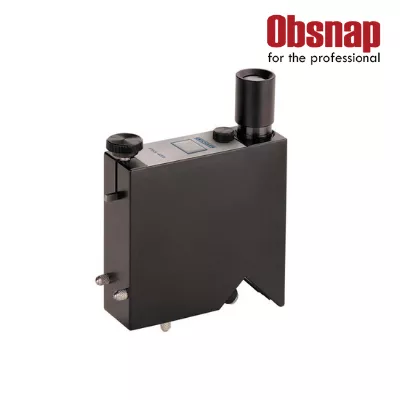

P.I.G. 455 (2)

P.I.G. 455

Features:

Measuring the composition of an unknown stratum.
Measurement on any bearing-capable substrate (wood, plastics, metal, etc.).
Metal cutter that may be exchanged
Controlled, tilt-free directing of the cutting action.
Integrated vernier with a microscope for accuracy.

Categories: Coating / Paint Testing, Coating Thickness Gauge

Specifications:

Property	Value
Range	No. 1: 20 µm – 2,000 µm No. 4: 10 µm – 1,000 µm No. 5: 5 µm – 500 µm No. 6: 2 µm – 200 µm
Cutting angle α	No. 1: 45 ° No. 4: 26.6 ° No. 5: 14 ° No. 6: 5.7 °
Factor (μm/sc.div.)	No. 1: 20 No. 4: 10 No. 5: 5 No. 6: 2
Measuring accuracy	1 %
Battery	2x Mignon AA
Dimensions	110 mm x 85 mm x 25 mm
Weight	400g
