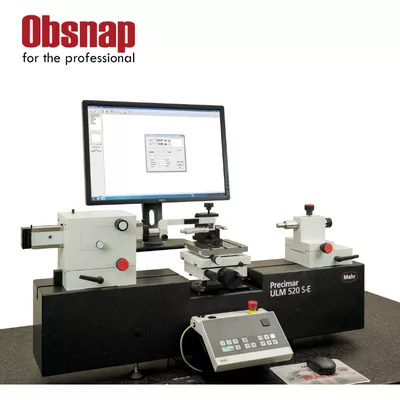

Mahr Metrology Precimar ULM 520 S-E
Universal length measuring instruments with a direct measuring range over the entire length of the instrument. Comparator with horizontal base bed (hard rock with high homogeneity and stiffness)
Measuring system X-axis: Incremental, high-precision Heidenhain length measuring system, 100 mm long in the measuring element
incremental Heidenhain incident light measuring systems over the entire basic bed length to the left and right of the object table in the base bed
Measuring system Z-axis: Incremental, high-precision RENISHAW length measuring system, 80 mm long
- Calibration measuring instruments ULM 520 S-E
- Measuring range Outdoor measurement [mm] 0 to 520
- Measuring range Internal measurement [mm]
Description
| Precimar ULM 520 S-E | Art.-No. 5350267 | |
|---|---|
| Device dimensions (LxWxH) [mm] | 1080 x 380 x 480 |
| Measuring range outdoor measurement [mm] | 0 to 520 |
| Measuring range internal measurement [mm] | 0.5 to 365 |
| Direct measuring range [mm] | External measurement: 0 to 520 Internal measurement: 0.5 to 365 |
| Length measurement deviation MPEE1 (L in mm) [μm] | only with ABBE measuring element: MPE E1 ≤ (0.09+L/2000) with basic bed measuring system: MPE E1 ≤ (0.6+L/1000) |
| Measuring forces [N] | 0,2 ; 1.0 to 4.5 ; 11 |
| Repeatability [μm] | with Abbe measuring element: ≤ 0.05 with base bed measuring system: ≤ 0.2 |
| Device length [mm] | 1080 |
| Mass [kg] | 160 |
