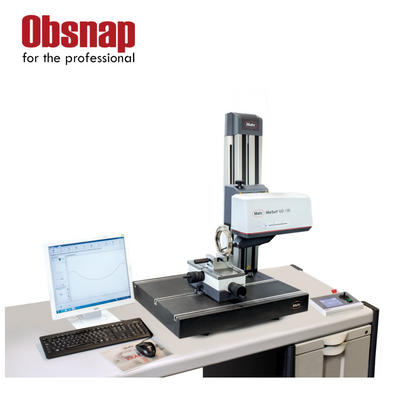

Mahr Metrology MarSurf UD 130
The entry into
high-precision measurement technology
with 130 mm sensing distance
The MarSurf UD 130 closes the gap between the high-end solution MarSurf LD 130 / LD 260 and the new standard combination measuring station MarSurf VD 140 / 280 with two probe systems.
The technical data of the MarSurf UD 130 are based on the high-quality inferometric probe system, and the fast measuring and positioning speeds, which enable the reduction of measuring times per workpiece.
- Roughness and contour in one go
- High measuring and positioning speed
minimizes measuring times many times over - Innovative probe system solution
- Fast and safe replacement of the probe arms
with simultaneous probe arm detection by
magnetic hatching
Description
| MarSurf UD 130 | Art.-No. 6720823 | |
|---|---|
| Resolution | 2 nm |
| Probe arm length | 100 mm; 150 mm; 200 mm |
| Leadership Deviation | 0.12 μm / 60 mm 0.40 μm / 130 mm |
| Measuring speed | 0.1 mm/s to 5 mm/s |
| Tactile section (in X) End | 130 mm |
| Positioning speed | 0.1 mm/s to 30 mm/s |
| Button | Combined roughness and contour probe system |
| Measuring range mm | 10 mm (100mm probe arm) 20 mm (200mm probe arm) |
| Tactile distances | 0.1 mm to 130 mm |
| Measuring force (N) | 1 mN to 30 mN, adjustable by software |
