Mahr Metrology MarShaft SCOPE 600 plus 3D

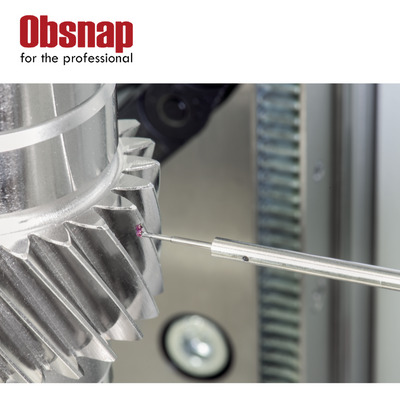

The MarShaft SCOPE 600 plus 3D can be used for optical and tactile measurements directly in the harsh manufacturing environment. In addition to the standard measurement of rotationally symmetrical workpieces, the 100% 3D function can be used to also cover features that were previously reserved for a 3D coordinate or gear measuring machine.
Variety of applications for our products
- Complete measurement of camshafts
- Complete measurement of gear shafts
Typical workpieces
- Camshaft
- Gear shafts
- Eccentric shafts
- Shafts with keyways or blind boreholes
Art. no. 5361522
Description
| MarShaft SCOPE 600 plus 3D | Art.-Nr. 5361522 | |
|---|---|
| Measuring range length (Z) (mm) | 600 |
| Measuring range diameter (X) (mm) | 120 |
| Length/diameter resolution (mm) | 0.01 to 0.0001 |
| Angle resolution (°) | 0.01 to 0.0001 |
| Length error limit (Z) (µm) | (2 + L/125) L in mm (at 20°C ± 1°C on reference standard) |
| Diameter error limit (X) (µm) | (1.0 + L/125) L in mm (at 20°C ± 1°C on reference standard) |
| Drives | Servo motors |
| Lens | Telecentric precision lens High-resolution CCD array |
