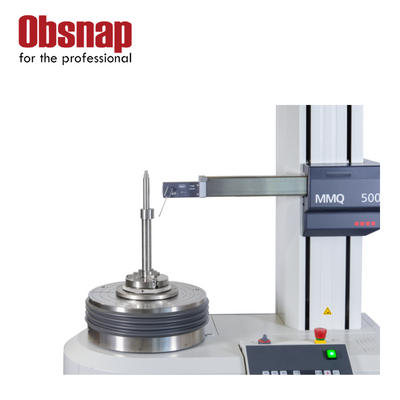

Mahr Metrology MarForm MMQ 500
The new MMQ 500 is the best option when it comes to tabletop form testers
- Fast: More capacity on the form tester
- Universally applicable: From small to large and heavy workpieces
- Intuitive software: Short teach-in phase
- Accurate even as the tolerances become smaller
High load capacity
You can even measure heavy workpieces of up to 80 kg using the particularly high-performance ZK table.
Faster alignment
The newly developed centering and tilting table enables alignments to be completed faster than on comparable models thus increasing efficiency and productivity.
Variety of applications for our products
Form & position, roughness, contour, waviness, and line form in the following industriesMachine building
Bearings, ball screws, shafts, sockets, rotational bushingsMeasurement close to production
PLC and end-of-line testing
Automotive industry
Steering, brake system, gearbox, motor
Medicine
Hip and knee endoprostheses, medical screws, teeth implants
Art. no. 5440901
| MarForm MMQ 500 | Art.-Nr. 5440901 | |
|---|---|
| Roundness deviation (µm+µm/mm measuring height) * | 0,01 + 0,00025 |
| Straightness deviation / total measuring path (µm)**, Z axis | 0.3 |
| Parallelism deviation Z-/C axis in tracing direction, measuring path (µm) | 0.6 |
| Measuring speed (mm/s), Z axis | 100 |
| Roundness deviation (µm+µm/mm measuring height) ** | 0,02 + 0,0005 |
| Axial runout deviation (µm+µm/mm measuring radius) * | 0,02 + 0,0001 |
| Axial runout deviation (µm+µm/mm measuring radius) ** | 0,04 + 0,0002 |
| Centering and tilting table | automatic |
| Table diameter (mm) | 300 |
| Table load capacity, centered (N) | 800 |
| Footer text | * Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution. ** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard probe arm with ball diameter 3 mm. Proof at the standard using error separation techniques. Given the number of different options available, only a few machines are described here by way of example. Technical data for “your” MMQ is available from Mahr on request |
