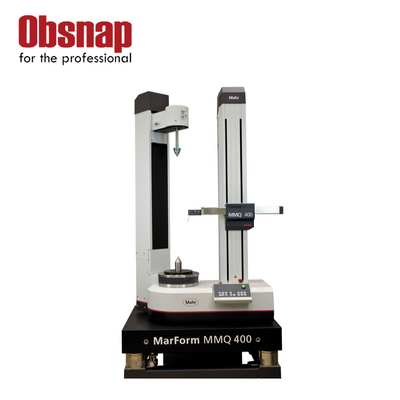

Mahr Metrology MarForm MMQ 400
The MarForm MMQ400 range is the flexible, fully automated solution for form and position measurements and much more.

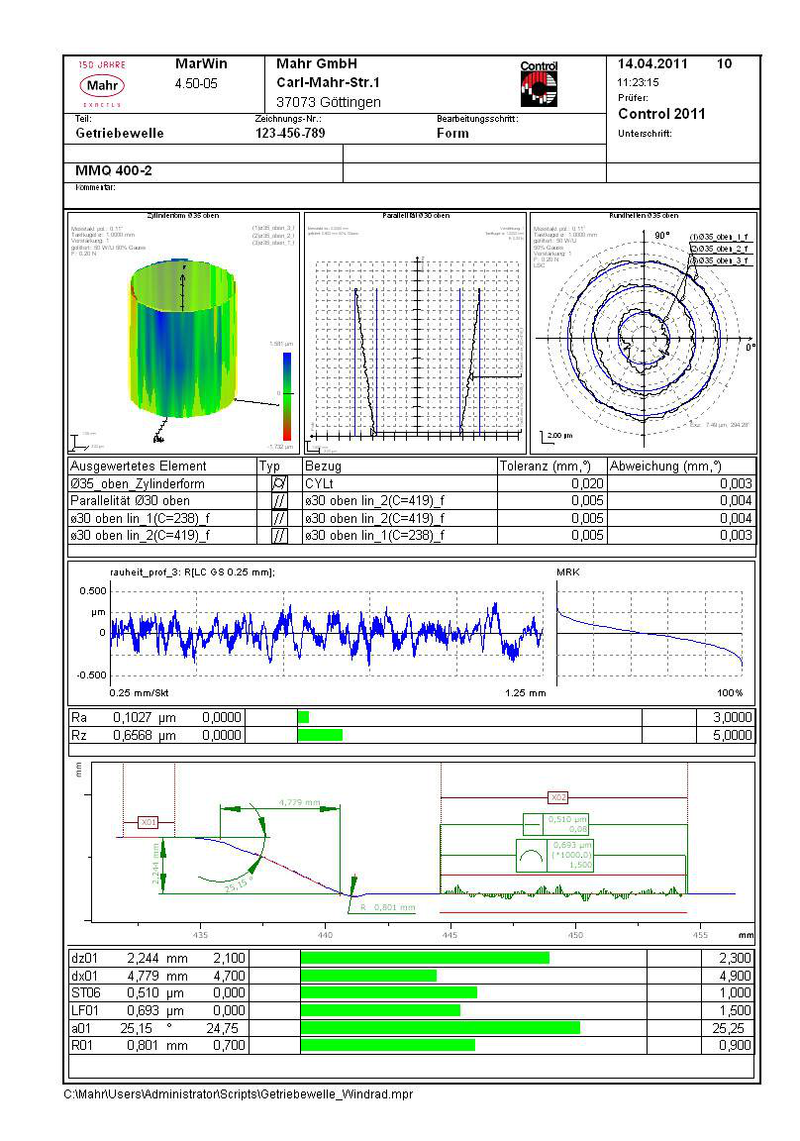

The use of extremely smooth axes and the MarWin platform software ensure that other applications, such as roughness, waviness, and contour measurements can be completed.
The flexibility and versatility provide a highly cost-effective measuring system which pays for itself in the shortest amount of time.
Variety of applications for our products
Form & position, roughness, contour, waviness, and line form in the following industriesMachine building
Bearings, ball screws, shafts, sockets, rotational bushingsMeasurement close to production
PLC and end-of-line testing
Automotive industry
Steering, brake system, gearbox, motor
Medicine
Hip and knee endoprostheses, medical screws, teeth implants
Art. no. 5440787
| MarForm MMQ 400 | Art.-Nr. 5440787 | |
|---|---|
| Roundness deviation (µm+µm/mm measuring height) * | 0,01 + 0,00025 |
| Measuring path, motorized Z (mm) | 900 |
| Straightness deviation / 100 mm measuring path (µm)**, Z axis | 0.15 |
| Straightness deviation / total measuring path (µm)**, Z axis | 0.9 |
| Parallelism deviation Z-/C axis in tracing direction, measuring path (µm) | 2 |
| Measuring speed (mm/s), Z axis | 0,1-30 |
| Positioning speed (mm/s), Z axis | 0,5 -100 |
| Measuring path, motorized X (mm) | 280 |
| Roundness deviation (µm+µm/mm measuring height) ** | 0,02 + 0,0005 |
| Straightness deviation /av. 100 mm measuring path (µm)**, X axis | 0.5 |
| Straightness deviation / total measuring path (µm)**, X axis | 1.5 |
| Axial runout deviation (µm+µm/mm measuring radius) * | 0,02 + 0,0001 |
| Axial runout deviation (µm+µm/mm measuring radius) ** | 0,04 + 0,0002 |
| Centering and tilting table | automatic |
| Table diameter (mm) | 285 |
| Table load capacity, centered (N) | 400 |
| Speed (rpm) 50 Hz / 60 Hz | 0.2-15 |
| Footer text | * Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution. ** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard probe arm with ball diameter 3 mm. Proof at the standard using error separation techniques. Given the number of different options available, only a few machines are described here by way of example. Technical data for “your” MMQ is available from Mahr on request. |
