Mahr Metrology MarForm MMQ 100

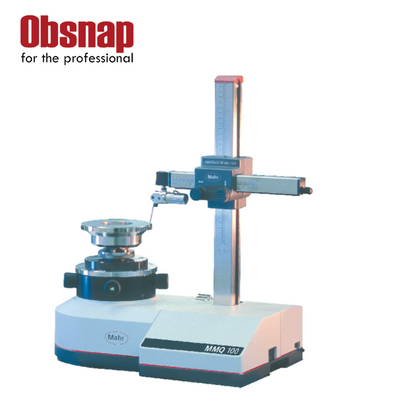

The MarForm MMQ 100 form tester offers the perfect solution for simple yet precise measurement tasks such as roundness, concentricity or waviness analyzes (fft) in a production-related environment. Thanks to its low weight and handy dimensions, the MMQ100 is mobile and therefore extremely economical to use.
The form tester MarForm MMQ 100 offers the perfect solution for simple yet precise measuring tasks.

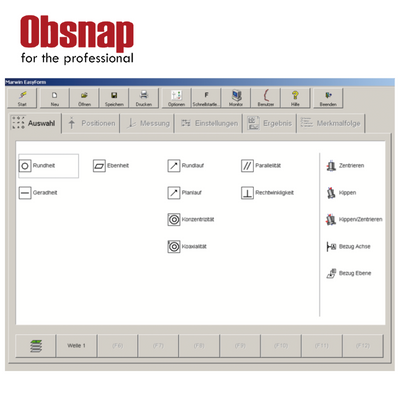

Description
| MarForm MMQ 100 | Item No. 5440691 | |
|---|---|
| Roundness deviation (µm+µm/mm measuring height) * | 0.025 + 0.0003 |
| Positioning Z axis | manually |
| Roundness deviation (µm+µm/mm measuring height) ** | 0.05 + 0.0006 |
| Axial run-out (µm+µm/mm measuring radius) * | 0.02 + 0.0003 |
| Axial run-out (µm+µm/mm measuring radius) ** | 0.04 + 0.0006 |
| Centering and tilting table | manually |
| Table diameter (mm) | 160 |
| Table load capacity, centric (N) | 200 |
| Speed (1/min) 50 Hz / 60 Hz | 5 / 6 |
| footer text | * Values as maximum deviation from reference circle LSC, filter 15 waves/circumference. ** All values according to DIN ISO 1101 at 20 °C ±1 °C in a vibration-free environment, filter 15 shafts/circumference LSC or 2.5 mm LSS, 5 revolutions 1/min or 5 mm/s and standard stylus arm with ball diameter 3 mm. Proof on the standard including error separation methods. Due to the large number of possibilities, only a few machines are described here as examples. The technical data of “your” MMQ is available from Mahr on request. |
