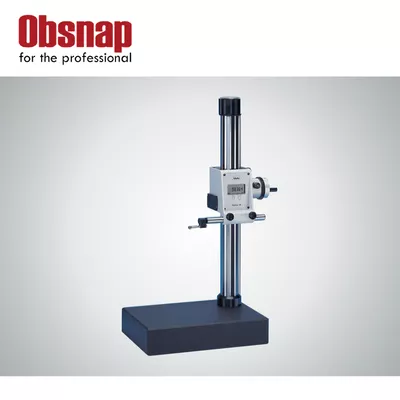

Mahr Metrology Digimar 816 CL
Height measuring instrument Digimar 816 CL
Measuring range mm: 0 – 600 mm
0.001 mm, 0.01 mm / 0.00005 inch, 0.0001 inch
Error limit: (2.8+L/300) L in mm
Data interface: Opto RS-232C, USB, wireless
Package contains: height measuring instrument incl. operating and display unit, carrier 817h1, probe K6/51, setting block 817 eb, instruction manual, power source, protection cover, calibration certificate
Art. no. 4429031
Description
| Digimar 816 CL | Art.-Nr. 4429031 | |
|---|---|
| Measuring range mm | 0 – 600 |
| Measuring range inch | 0 – 24″ |
| Resolution | 0.001 mm , 0.01 mm |
| Resolution | 0.00005 inch , 0.0001 inch |
| Error limit | (2.8+L/300) L in mm |
| Repeatability bores | 3 µm |
| Repeatability planes | 2 µm |
| Perpendicularity error in µm | 20 µm |
| Measuring force (N) | 1.0 +/- 0.2 N |
| Product weight | 30 kg |
| Standard | Factory standard |
| Data interface | Opto RS-232C , USB , wireless |
