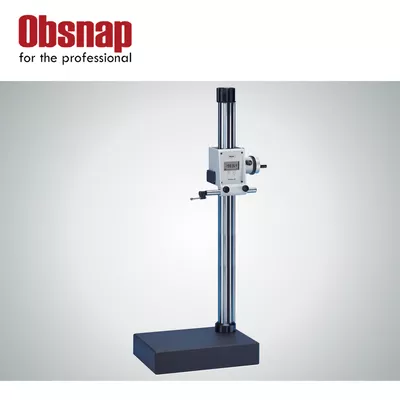

Mahr Metrology Digimar 814 G
Height measuring and scribing instrument Digimar 814 G
Measuring range mm: 0 – 620 mm
Resolution: 0.001 mm, 0.01 mm
Resolution: 0.00005 inch, 0.0005 inch
Error limit µm: 30 µm
Data interface: Opto RS-232C, wireless
Package contains: height measuring instrument incl. operating and display unit, caliper arm 814t, spherical probe 814 m, 8 mm, battery, instruction manual, protection cover, test certificate
Variety of applications for our products
- For measuring heights and distances between bores, surfaces and edges
- For selecting and marking out workpieces
Art. no. 4426543
Description
| Digimar 814 G | Art.-Nr. 4426543 | |
|---|---|
| Measuring range mm | 0 – 620 |
| Measuring range inch | 0 – 24.4″ |
| Resolution | 0.001 mm , 0.01 mm |
| Resolution | 0.00005 inch , 0.0005 inch |
| Error limit inches | .0012″ |
| Error limit µm | 30 µm |
| Error limit inches | 0.0012 inch |
| Perpendicularity error in µm | 30 µm |
| Measuring force | 3 N |
| Product weight | 18.3 kg |
| Standard | Factory standard |
| Data interface | Opto RS-232C , wireless |
