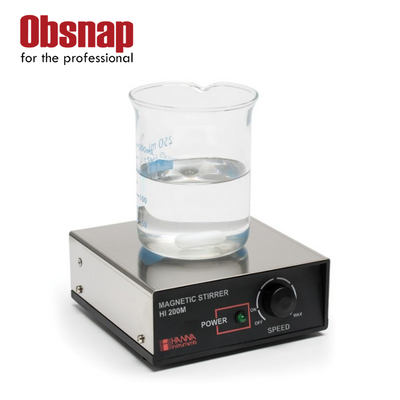

Hanna Instruments Stainless Steel Cover Magnetic Mini-Stirrer – HI200M
A magnetic stirrer with an AISI 316 stainless steel cover, the HI200M is small and light. For stirring samples that are undergoing an exothermic reaction that could harm the cover of a plastic stirrer, the stainless steel top is perfect. The stirring speed can be changed between 100 and 1000 RPM. When lab benchtop space is at a premium, the HI200M stirrer’s small footprint is advantageous.
- SpeedsafeTM technology
- Adjustable speed control on a stainless steel top
Description
The test sample should ideally be mixed before electrochemistry measurements are conducted. A magnetic stirrer is used to ensure correct mixing and uniform temperature and consistency of the sample. A sensor’s response time to obtain a stable reading is sped up by agitating the sample.
- Compact and economical
Due to its small size and lightweight, the HI200M mini-magnetic stirrer is simple to use in a laboratory setting. With the help of this sturdy, space-saving stirrer, a lack of space on laboratory benchtops is no longer an issue. Users at a distance are further assured that the stirrer is in use by power-indicating LED lights. Chemicals that are spilled accidentally won’t destroy the sturdy plastic coating. For customers who do not require the additional costs of a heating element, the HI200M magnetic mini-stirrer is a cost-effective option. The cutting-edge design includes electronic controls that let the user easily and precisely manage the speed.
- Metal Cover: Stainless
On top of the ABS body of the HI200M stirrer is an AISI 316 stainless steel cover. The cover is the perfect answer for applications where exothermic reactions take place. It is also commonly known that the AISI 316 kind of steel has greater resistance to chlorine corrosion.
- Speedsafe™
In the laboratory, a sample is frequently taken out of a stirrer before the speed has been sufficiently decreased. Normally, the internal motor would speed up until it was harmed. The SpeedsafeTM mechanism is built into the HI200M magnetic mini-stirrer to adjust speed in response to variations in viscosity or the removal of a load. With SpeedsafeTM, the stirring speed is tracked by an opto-sensor, which is connected to an FVC (frequency voltage converter). The voltage-controlled oscillator (VCO) is turned off by the speed limiter when the speed reaches a certain maximum level, which reduces the motor speed. This prevents the motor from rapidly accelerating to a high speed that would be dangerous to both the operator and the stirrer when the load is quickly withdrawn from the stirrer, a characteristic not frequently present in conventional stirrers.
- Switch Protection
The HI200M has a changeable fuse for safety in the case of a short circuit. For added protection, the HI200circuitry M’s is grounded to the casing.
| SKU | HI200M-2 |
|---|---|
| Product Name | Stainless Steel Cover Magnetic Mini-Stirrer – HI200M |
| Quote Required | Yes |
| Power Supply | 110/115 VAC, 50/60 Hz |
| Environment | 0 to 50°C (32 to 122°F), RH max 95% non-condensing |
| Dimensions | 120 x 120 x 45 mm (4.8 x 4.8 x 1.8”) |
| Weight | 710 g (1.6 lbs.) |
| Ordering Information | HI200M magnetic mini-stirrer is supplied with micro stir bar (1) and instructions |
| Maximum Stirring Capacity | 1 liter (0.26 gallons) |
| Minimum Speed | 100 rpm |
| Maximum Speed | 1000 rpm |
| Installation Category | II |
| Cover Material | AISI 316 stainless steel |
