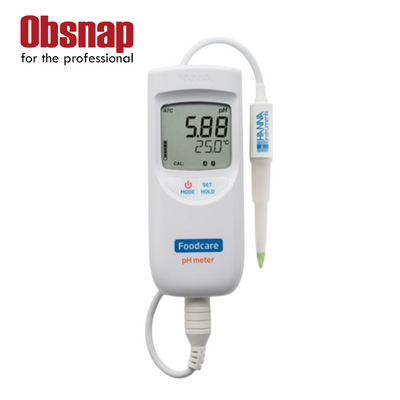

Hanna Instruments HI99161 Portable Food and Dairy pH Meter
A portable pH and temperature meter designed specifically for use in dairy applications is the Foodcare HI99161. pH monitoring is crucial throughout the dairy processing process to ensure the quality of dairy products.
The FC2023 pH electrode’s robust, washable PVDF housing and conical tip make it ideal for measurements in semi-solids like meats and cheeses. The FC2023 has a free diffusion sleeve reference junction, which prevents typical clogging problems in thick liquids like milk or sauces.
- Automatic Temperature Compensation
- Automatic Two-Point Calibration
- Waterproof
For measuring the pH of milk, yogurt, meats, cheeses, fruit, sushi, rice, jams, jellies, bread, ice cream, yogurt, drinks, and juice, the FC2023 electrode is the best option.
Conical Glass Tip
The conical-shaped tip design enables direct pH measurement in food products including milk, cheese, yogurt, and meat by penetrating solids, semi-solids, and emulsions.
Open Junction Reference
The internal Ag/AgCl reference and sample are connected via a solid gel interface called viscolene in the open junction design. This interface provides a quick reaction and steady reading by preventing silver from entering the sample and making it impervious to clogging.
PVDF Body
Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents, including sodium hypochlorite. It has high abrasion resistance, mechanical strength and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth.
Features at-a-glance
- Automatic Temperature Compensation
- One or two-point automatic calibration
- BEPS – Alerts the user of low battery power that could adversely affect readings
- Compact, heavy-duty, and waterproof
- Battery % displayed on start-up
- HELP feature, displays tutorial messages on LCD
| SKU | HI99161 |
|---|---|
| Product Name | Portable Food and Dairy pH Meter – HI99161 |
| Quote Required | Yes |
| pH Range | -2.00 to 16.00 pH; -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH; 0.1 pH |
| pH Accuracy | ±0.02 pH; ±0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) |
| pH Temperature Compensation | automatic ‐5.0 to 105.0 °C/23.0 to 221.0 °F |
| pH CAL Check (electrode diagnostics) | probe condition indicator |
| mV Range | ±825 mV (pH‐mV) |
| mV Resolution | 1 mV (pH‐mV) |
| mV Accuracy | ±1 mV (pH‐mV) |
| Temperature Range | -5.0 to 105.0°C / 23.0 to 221.0°F |
| Temperature Resolution | 0.1°C / 0.1°F |
| Temperature Accuracy | ±0.5°C (up to 60°C); ±1.0°C (outside) / ±1°F (up to 140°F); ±2.0°F (outside) |

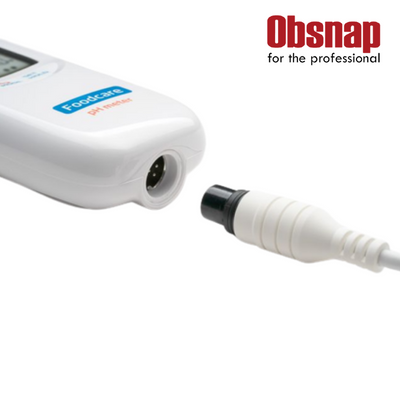

| pH Electrode | FC2023 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) |
| Automatic Shut-Off | user selectable |
| Battery Type/Life | 1.5V (3) AAA / approximately 1400 hours of continuous use |
| IP Protection | IP7 |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |

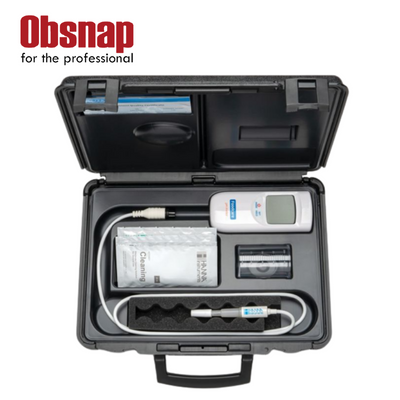

| Ordering Information | HI99161 is supplied with FC2023 pH/temperature probe, HI70004 pH 4.01 buffer solution sachet (20 mL), HI70007 pH 7.01 buffer solution sachet (20 mL), HI700602 electrode cleaning solution sachets (2 x 20 mL), 100 mL beaker (1), batteries, calibration certificates for meter and probe, instructions, and hard carrying case. |
