Hanna Instruments HI98199 Multiparameter Portable pH/EC/DO Waterproof Meter

A robust, transportable multiparameter meter with a single digital probe input is the HI98199. You can attach a pH, conductivity, or dissolved oxygen probe to the digital probe input. The HI98199 can measure up to 10 water quality parameters using the three probes and an integrated barometric pressure transducer, with 5 being measured by sensors and the remaining 5 being calculated (i.e. EC to TDS). This expert, IP67-compliant waterproof meter comes with all required pH/temperature measurement accessories bundled in a tough carrying case.

Digital Electrodes
USB-C for Data Transfer
Dot Matrix Display

Categories: Dissolved Oxygen (DO), Electrical Conductivity (EC), pH, Portable Meter

Description

HI98199

Superior toughness
This meter is designed to survive immersion in 1m of water for up to 30 minutes and has an IP67 rating, making it waterproof. The battery compartment and connectors on the meter are sealed with rubber gaskets and epoxy to keep out any water that could harm the internal electronics. The HI98199 will fit comfortably in your hand and be waterproof, providing years of use.

Display with Dots

A user is directed through any setup configuration or calibration thanks to the huge dot matrix display’s simple user interface. Contextual help relevant to the current screen is available with a dedicated help key. The dot matrix display may be viewed in direct sunlight and features a backlight for viewing in dim light

Keypad in Alphanumeric

Virtual keys and the low-profile vulcanized rubber keypad provide quick password, user ID, and sample site entry. To stop unauthorized changes, the setup of the meter can be password-protected. Any documented readings include the user and sample IDs, which can be uploaded to a PC for analysis or long-term record keeping.

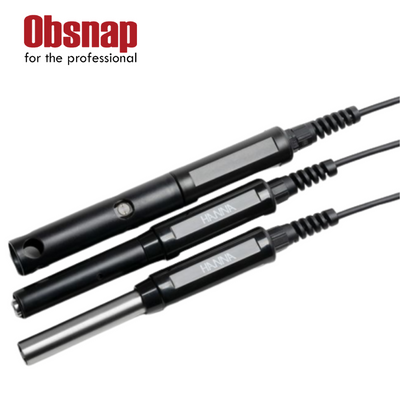

Digital probes for HI98199

Digital Detectors

High-tech digital electrodes with an integrated microprocessor are used in HI98199 to carry out the measurements. These probes are automatically detected when they are connected to the meter, and the meter is updated to display the proper parameter. A quick connect DIN connector that offers a reliable watertight connection is another characteristic of these digital electrodes.

Flexibility

A pH/temperature probe is included with the HI98199. By acquiring the appropriate probe, the meter can always be modified to measure dissolved oxygen or conductivity.

Traceability
The dedicated Good Laboratory Practice (GLP) button on the meter can be used at any time to read the calibration details for a connected probe. Date, time, calibration points, and probe characteristics are all part of the calibration information.

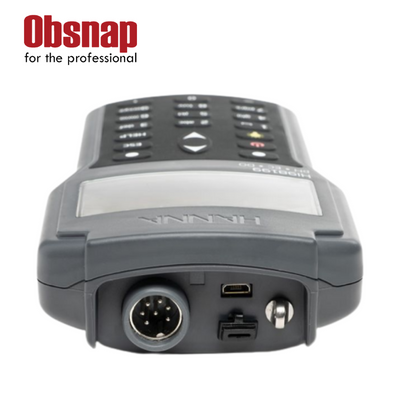

Digital Probe Connection with Auto-Sensor Recognition and Quick Connect

A rapid and waterproof connection is made possible with the Quick Connect DIN connector. The meter will detect the inserted probe automatically and upload calibration data that has been stored. Then, each probe overcomes issues with traditional analog probes by sending readings to the meter digitally.

Transfer of Data via USB-C Port

When utilizing software that is compatible with Windows, the USB-C port is utilized to transport logged data to a PC. The HI98199 may record up to 45,000 samples either via interval logging over a predetermined time period or by recording a single reading on demand.

Pressure Transducer Built-In

For the purpose of measuring barometric pressure, the HI98199 contains an integrated pressure transducer. Any linked probe can be used to view the pressure measurement, however it is only used while measuring dissolved oxygen to provide automatic ambient pressure compensation.

More Information
SKU	HI98199
Product Name	Multiparameter Portable pH/EC/DO Waterproof Meter – HI98199
Quote Required	Yes
pH Range	0.00 to 14.00 pH
pH Resolution	0.01 pH
pH Accuracy	±0.02 pH
pH Calibration	automatic one, two, or three points of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer
pH Temperature Compensation	yes
mV Range	±600.0 mV
mV Resolution	0.1 mV
mV Accuracy	±0.5 mV
EC Range	0 to 200 mS/cm
EC Resolution	1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; 1 mS/cm
EC Accuracy	±1.5% of reading or ±2 μS/cm whichever is greater
EC Calibration	automatic single-point, with six standard solutions (84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point
TDS Range	0.0 to 200.0 ppt (g/L) (the maximum value depends on the TDS factor)
TDS Resolution	1 ppm (mg/L); 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L)
TDS Accuracy	±1% of reading or ±1 ppm (mg/L) whichever is greater
TDS Calibration	based on conductivity calibration
EC/TDS Temperature Compensation	yes
Temperature Correction Coefficient	0.00 to 6.00 %/°C
EC to TDS Conversion Factor	0.00 to 1.00
Reference Temperature	25 °C or 20 °C
Cell Type	four ring
EC/TDS Multi-range Measurement Modes	yes
Salinity (PSU) Range	0.00 to 70.00 PSU
Salinity (PSU) Resolution	0.01 PSU
Salinity (PSU) Accuracy	±2% of reading or ±0.01 PSU whichever is greater
Salinity (PSU) Calibration	based on conductivity calibration
Salinity (Seawater Sigma) Range	0.0 to 50.0 σt, σ0, σ15
Salinity (Seawater Sigma) Resolution	0.1 σt, σ0, σ15
Salinity (Seawater Sigma) Accuracy	±1 σt, σ0, σ15
Salinity (Seawater Sigma) Calibration	based on conductivity calibration
Resistivity Range	0 to 999999 Ω•cm; 0 to 1000.0 kΩ•cm; 0 to 1.0000 MΩ•cm
Resistivity Resolution	1 Ω•cm; 0.1 kΩ•cm; 0.0001 MΩ•cm
Resistivity Calibration	based on conductivity calibration
Dissolved Oxygen Measurement Type	galvanic
Dissolved Oxygen Range	0.0 to 500.0%; 0.00 to 50.00 ppm (mg/L)
Dissolved Oxygen Resolution	0.1%; 0.01 ppm (mg/L)
Dissolved Oxygen Accuracy	0.0 to 300.0%
Dissolved Oxygen Calibration	automatic one or two points at 0, 100% or one custom point
Dissolved Oxygen Temperature Compensation	yes
Barometric Pressure Compensation	yes
Salinity Compensation	yes
Temperature Range	-5.00 to 55.00 °C; 23.00 to 131.00 °F; 268.15 to 328.15 K
Temperature Resolution	0.01 °C; 0.01 °F; 0.01 K
Temperature Accuracy	±0.15 °C; ±0.27 °F; ±0.15 K
Temperature Calibration	automatic at one custom point
Temperature Compensation	automatic from -5 to 55 °C (23 to 131 °F)
Logging Type	continuous logging or log-on-demand
Logging Memory	45000 records
Logging Interval	one second to three hours
Connectivity	via USB-C with Hanna software
Automatic Shut-Off	Not used (disabled), 5, 10, 15, 20, 30, 60 minutes
GLP	yes
Calibration Timeout Reminder	yes
Display	dot matrix
Battery Type/Life	1.5V AA batteries (4) / approximately 400 hours of continuous use without backlight (50 hours with backlight)
IP Protection	IP67
Environment	0 to 50 °C (32 to 122 °F); RH 100%
Dimensions	185.0 x 93.0 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight	400 g (14.2 oz.)
Ordering Information	HI98199 is supplied with the HI829113 pH digital probe with 4m (13’) cable, pH calibration solution sachets, PC software, micro USB cable, batteries, quality certificate, and instruction manual in a rugged carrying case.
Atmospheric Pressure Range	450 to 850 mmHg; 17.72 to 33.46 in Hg 600.0 to 1133.2 mbar; 8.702 to 16.436 psi 0.5921 to 1.1184 atm; 60.00 to 113.32 kPa
Atmospheric Pressure Resolution	0.1 mmHg; 0.01 in Hg; 0.1 mbar; 0.001 psi; 0.0001 atm; 0.01 kPa
Atmospheric Pressure Accuracy	±3 mmHg within ±15 °C from the temperature during calibration
Atmospheric Pressure Calibration	automatic at one custom point
