Hanna Instruments HI98162 Professional Portable Milk pH Meter
Using the FC1013 probe specifically designed for milk products, the HI98162 is a tough, waterproof, Foodcare portable pH meter to measure pH and temperature of milk products. Producers can improve their processing methods by understanding the pH of raw milk. Milk pH testing makes it easier to spot contaminants, spoilage, and infection symptoms.

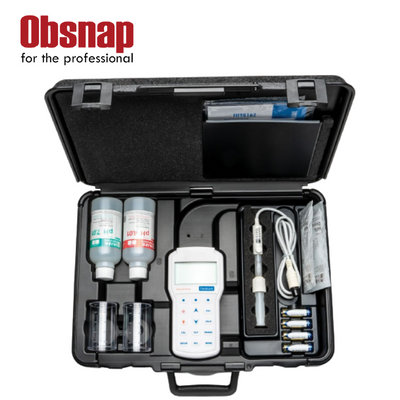

This expertly designed, IP67-compliant waterproof meter comes with all the tools required to conduct a pH/temperature test and is housed in a sturdy thermoformed carrying box that keeps the meter, probe, and calibration buffers safely in place.
- Quick Connect DIn Connector
- USB Connection for Data Transfer
- Dedicated Help Button
PVDF Body
The FC1013 pH electrode has a long-lasting, chemically resistant food-grade PVDF body.
Spheric Glass Tip
The sensor bulb and aqueous milk sample have the best interaction when they are in touch with a big surface area.
Built-In Temperature Sensor
The most precise, temperature-compensated data are provided by a thermistor temperature sensor in the tip of the pH indicator bulb.
On-Screen Features
Setup screen
A wide range of programmable choices, including time, date, temperature units, and language for help displays and instructions, are available on our comprehensive setup screen.
Calibration
pH calibration comes with comprehensive CAL CheckTM messages. On-screen instructions that walk users through each stage of the calibration process.
GLP
By hitting the GLP key, comprehensive GLP features are instantly available. It is possible to review calibration data, which includes the date, time, offset, slope, and buffers used in the most recent calibration.
Features
- Contextual help at the press of a button
- High contrast, graphic LCD screen is easy viewing in bright sunlight and low-lit areas
- Five-point pH calibration with seven standard buffers and five custom buffers
- Displays overall condition of the pH electrode after calibration based on the offset and slope characteristics
- Calibration timeout to alert the user at a defined interval when the calibration has expired
- AutoHold freezes displayed measurement reading when stable
- GLP data including date, time, pH calibration buffers, offset, and slope
- 200 hour battery life with battery level displayed on measurement screen
- PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Ergonomic, rugged, waterproof (IP67) design
Supplied with FC1013 Foodcare pH/Temperature electrode
- Body made of food grade PVDF plastic
- Refillable with silver free electrolyte
- Open junction design that resist clogging from food solids
- General purpose pH sensing glass suitable for a wide range of temperatures
- Built in temperature sensor for temperature compensated measurements
Five-point pH calibration with seven standard buffers and five custom buffers
CAL Check
- Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination
- Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics
Log-on-demand
- Store measurement data at the press of a button
AutoHold
- Freezes displayed measurement reading upon stabilization
GLP Features
- GLP data including date, time, pH calibration buffers, offset, and slope
- GLP data stored with logged data for traceability
Calibration timeout to alert the user at a defined interval when the calibration has expired
Multiple language selection
200 hour battery life with battery level displayed on measurement screen
Menu driven for ease of use with virtual-key extended functionality
Contextual help at the press of a button
Backlit, graphic LCD
Connectivity
- PC connectivity via a sealed opto-isolated micro USB and HI92000 software
More Information SKU HI98162 Product Name Professional Portable Milk pH Meter – HI98162 Quote Required Yes pH Range -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH pH Resolution 0.1 pH; 0.01 pH; 0.001 pH pH Accuracy ±0.1; ±0.002 pH pH Calibration up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers pH Input impedence 10¹² Ohms mV Range ±2000 mV mV Resolution 0.1 mV mV Accuracy ±0.2 mV Temperature Range -20.0 to 120.0°C (-4.0 to 248.0°F) Temperature Resolution 0.1°C (0.1°F) Temperature Accuracy ±0.4°C (±0.8°F) (excluding probe error) Temperature Compensation manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F) pH Electrode FC1013 pre-amplified pH probe with internal temperature sensor, quick connect DIN connector and 1 m (3.3’) cable (included) Logging Memory 200 samples (100 pH and 100 mV range) Connectivity opto-isolated USB with optional HI 92000 software and micro USB cable Automatic Shut-Off user selectable GLP Yes Battery Type/Life 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) IP Protection IP67 Environment 0 to 50°C (32 to 122°F); RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) Weight 400 g (14.2 oz.) Ordering Information HI98162 is supplied with FC1013 PVDF body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700640 electrode cleaning solution for milk deposits sachet (2), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual with quick start guide, instrument quality certificate and HI720161 hard carrying case.
