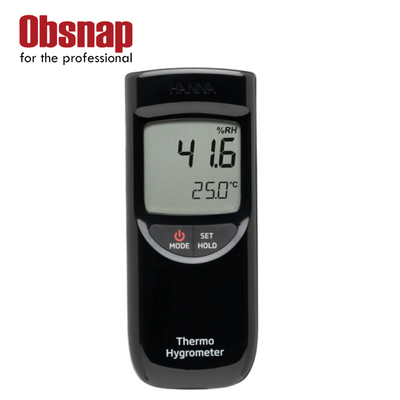

Hanna Instruments HI9564 Portable Thermohygrometer
The portable thermohygrometer HI9564 is made to operate at its best under challenging conditions. Thanks to the meter’s tough, water-resistant housing and the HI706023 probe’s sturdy shell, measurements of temperature and relative humidity are made simple. The HI9564 includes temperature readings in both Celsius and Fahrenheit, an auto-off function after 8 or 60 minutes, and on-screen warnings to guide procedures and highlight any problems.
- ABS body RH probe with built-in microchip
- °C/°F temperature readout
- 10,000 hour battery life
Features at-a-glance

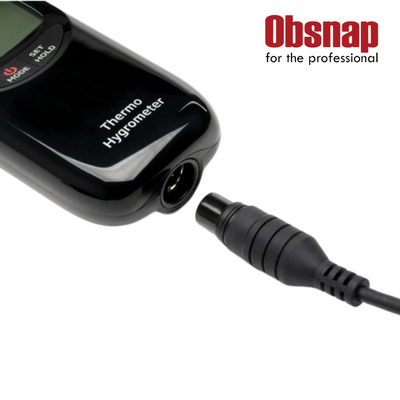

Durable Humidity Probe – The HI706023 is a thin-film polymer capacitive (TFPC) sensor that accurately measures relative humidity and temperature. Encased in a durable ABS housing, the probe features a perforated cap to allow for rapid and stable measurements. A built-in microchip allows for calibration data to be stored in the sensor as opposed to the meter. If the probe is connected to another hygrometer, the microchip transfers the stored calibration data and eliminates the need to recalibrate the instrument.
oC/oF Readout – Temperature is displayed in oC or oF. A slide switch on the HI9564 allows the user to change the temperature readout unit.
HOLD Button – A simple press of the HOLD button allows the user to freeze a measurement on the LCD screen. Even in HOLD mode, the meter channels can still be scrolled through to show the status of the meter when HOLD was pressed.
Auto-off Feature – The meter can be set to automatically turn off after 8 or 60 minutes.
Battery Error Prevention System (BEPS) – The Battery Error Prevention System detects when the batteries become too weak to ensure reliable measurements.
| SKU | HI9564 |
|---|---|
| Product Name | Portable Thermohygrometer – HI9564 |
| Quote Required | Yes |
| RH Range | 0.0 to 100.0% RH |
| RH Resolution | 0.1% RH |
| RH Accuracy | ±2.5% RH (0 to 90% RH); ±3.5% RH (outside) |
| Temperature Range | -10.0 to 60.0°C / 14.0 to 140.0°F |
| Temperature Resolution | 0.1°C / 0.1°F |
| Temperature Accuracy | ±0.4°C /±0.8°F |
| Thermohygrometer Probe | HI706023 thin-film polymer capacitive (TFPC) humidity probe, ABS body, perforated cap, internal temperature sensor with DIN connector and 1 m (3.3’) cable (included) |
| Automatic Shut-Off | User selectable |
| Battery Type/Life | 1.5V AAA (3) / approximately 10,000 hours of continuous use |
| Environment | 0 to 60°C (32 to 140°F); RH max 98% non-condensing |
| Dimensions | 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 196 g (6.91 oz.) |
| Ordering Information | HI9564 is supplied with HI706023 RH/temperature probe, 1.5V AAA batteries (3) and instruction manual. |
