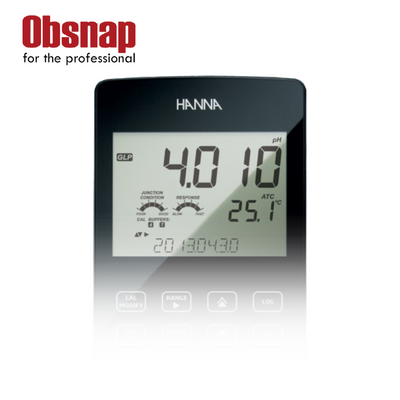

Hanna Instruments HI2020 edge® Multiparameter pH Meter
The innovative edge® tablet style meter is the result of Hanna’s vision, design skills, integrated production, and top-notch R&D. Although the edge meter is only 0.5″ thick, it is packed with functions to meet the needs of a wide range of clients.
There is a simple mode operation with a condensed menu and settings for people who like very basic operation. There is a fully fledged standard operating mode for individuals who seek advanced functionality. At any time, the edge HI2020 pH kit can be upgraded with extra conductivity or dissolved oxygen probes.
edge® has a ton of innovative features that guarantee accuracy and usability.
Digital Electrodes
With a built-in microchip that maintains calibration data and is immediately accessed by edge once the electrode is plugged in, edge electrodes are extremely sophisticated. Additionally, the 3.5 mm connector on these digital electrodes makes it simple to attach them, so you never have to worry about the pins being lined up correctly.
Sensor Check
Edge continuously monitors the impedance of the pH measuring electrode when used with Hanna pH electrodes that include a matching pin, notifying you in real time if glass breaks. The junction’s condition is checked by Sensor Check during calibration. A report on the reference junction is also analyzed and shown.
3.5 mm Probe Input
It has never been easier to attach an electrode; there are no alignment requirements and no damaged pins; simply connect the 3.5 mm connector and begin going.

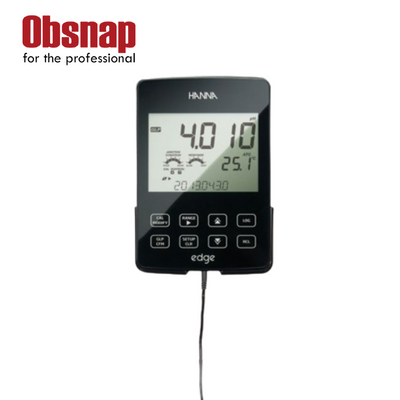

Wall Mount
Edge can be mounted to a wall using the provided wall mount cradle, leaving no footprint on the available benchtop area. A built-in connector in the cradle powers and charges the edge’s batteries. Edge’s minimal footprint is intended to help you free up valuable worksurface area.
Cradle and Electrode Holder
Edge has a tabletop cradle with an adjustable swivel electrode holder that allows it to be charged and held steadily in position at the best viewing angle.
edge® has a battery life of 8 hours, weighs about 8.8 oz., and has two USB connections.
Two USB Ports
Edge has two USB ports: a conventional USB connector for transferring data to a flash drive and a second micro USB port for charging your device when the cradle is not accessible and connecting to a computer to transfer files.
Data Logging
You can save up to 1000 log records of data on edge. Readings, GLP data, date, and time are all part of data sets.
Two Operating Modes
edge has two operating modes: extended and basic. While Basic Mode limits the number of functions to only a few, Extended Mode activates every option that is offered. For instance, while basic mode can only do calibration to 3 points with 5 preprogrammed buffers, extended mode edge enables 5 point calibration with 2 unique buffers.
| SKU | HI2020-02 |
|---|---|
| Product Name | edge® Multiparameter pH Meter – HI2020 |
| Quote Required | Yes |
| pH Range | -2.000 to 16.000 pH, -2.00 to 16.00 pH, ±1000 mV |
| pH Resolution | 0.001 pH, 0.01 pH, 0.1 mV |
| pH Accuracy | ±0.002 pH, ±0.01 pH, ±0.2 mV |
| pH Calibration | 5 points (Standard mode) 1.68, 4.01 (3.00†), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers; 3 points (Basic mode) 4.01; 6.86; 7.01; 9.18; 10.01 |
| pH Temperature Compensation | ATC |
| pH CAL Check (electrode diagnostics) | Probe condition, response time, glass and reference junction diagnostics ( HI 11311 & HI 12301 only) |
| EC Range | 0.00 to 29.99 μS/cm, 30.0 to 299.9 μS/cm, 300 to 2999 μS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (absolute EC)** |
| EC Resolution | 0.01 μS/cm, 0.1 μS/cm, 1 μS/cm, 0.01 mS/cm, 0.1 mS/cm |
| EC Accuracy | ±1% of reading (±0.05 μS/cm or 1 digit, whichever is greater) |
| EC Calibration | 1 point offset calibration (0.00 μS/cm in air), 1 point slope calibration in EC standard 84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 111.8 mS/cm |
| TDS Range | 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150 to 1499 ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS)**, with 0.80 conversion factor |
| TDS Resolution | 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L |
| TDS Accuracy | ±1% of reading (±0.03 ppm or 1 digit, whichever is greater) |
| TDS Calibration | through EC calibration |
| EC/TDS Temperature Compensation | ATC (0.0 to 100.0ºC; 32.0 to 212.0 °F), NoTC |
| Temperature Correction Coefficient | 0.00 to 6.00%/°C (for EC and TDS only), default value is 1.90%/°C |
| EC to TDS Conversion Factor | 0.40 to 0.80 |
| Salinity (% NaCl) Range | 0.0 to 400.0% NaCl*** |
| Salinity (% NaCl) Resolution | 0.1% NaCl |
| Salinity (% NaCl) Accuracy | ±1% of reading (@25ºC/77ºF) |
| Salinity (% NaCl) Calibration | 1 point with HI 7037L 100% NaCl sea water standard |
| Salinity (PSU) Range | 2.00 to 42.00 PSU*** |
| Salinity (PSU) Resolution | 0.01 PSU |
| Salinity (PSU) Accuracy | ±1% of reading (@25ºC/77ºF) |
| Salinity (PSU) Calibration | through EC calibration |
| Salinity Range | 0.0 to 80.0 g/L*** |
| Salinity Resolution (ppt) | 0.01 g/L |
| Salinity Accuracy (ppt) | ±1% of reading (@25ºC/77ºF) |
| Salinity Calibration (ppt) | through EC calibration |
| Dissolved Oxygen Range | 0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation |
| Dissolved Oxygen Resolution | 0.01 ppm, 0.1% saturation |
| Dissolved Oxygen Accuracy | ±1 digit, ±1.5% of reading |
| Dissolved Oxygen Calibration | one or two points at 0% (HI 7040 solution) and 100% (in air) |
| Dissolved Oxygen Temperature Compensation | ATC |
| Salinity Compensation | 0 to 40 g/L (with 1 g/L resolution) |
| Altitude Compensation | -500 to 4000 m (with 100 m resolution) |
| Temperature Range | -20.0 to 120.0 ºC, -4.0 to 248.0 °F |
| Temperature Resolution | 0.1 °C, 0.1 °F |
| Temperature Accuracy | ±0.5 °C, ±0.9 °F |
| pH Electrode | HI11310 pH electrode (included) |
| Logging Type | Manual log-on-demand (Max. 200 logs); Manual log-on-stability (Max. 200 logs); Interval logging *** (Max. 600 samples; 100 lots) |
| Logging Memory | up to 1000*** records |
| Connectivity | 1 micro USB port for charging and PC connectivity, 1 USB port for storage |
| Battery Type/Life | Built-in rechargeable battery with up to 8 hours of continuous use |
| Power Supply | 230VAC to 5 VDC adapter (included) |
| Environment | 0 to 50°C (32 to 122°F), RH max 95% non-condensing |
| Dimensions | 202 x 140 x 12.7mm (8” x 5.5” x 0.5”) |
| Weight | 250 g (8.82 oz) |
| Ordering Information | HI2020 pH kit includes |
| Notes | * temperature limits will be reduced to actual probe/sensor limits |
