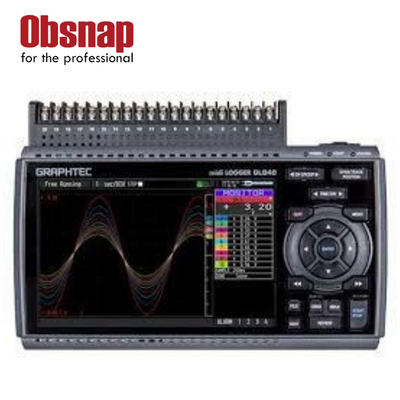

GL840

    midi LOGGER GL840 series

    1) GL840 expands to Two models for application specific use

    Suitable for temperature measurement in multiple channels. Suitable for voltage measurement in battery pack, or high-precision temperature measurement



    2) Three types of input systems enable measurement of various signals

    Along with the basic analog signal, Logic/Pulse, and digital sensors can be all connected to monitor a variety of measurements



    3) Wireless measurement using wireless LAN (option)

    Wireless LAN option enables the wireless communication with other device. When the GL840 is set as a station, PC and smart devices will be able to access the WLAN unit directly



    4) Combining GL100-WL and GL840

    GL100-WL can now be connected to the GL840 as a remote sensor using the WLAN feature. GL840 supports up to five units of the GL100-WL



    5) Useful function

    Various functions, such as a bar chart data display, alarm output function, navigation function, and networking features, are available in the GL840 to assist be conveniently used



    6) Maximum sampling interval of up to 10ms

    Provides faster sampling rate 10ms for voltage measurement



    7) Built-in 4GB flash memory with SD card support

    The new GL series enables reliable long term measurement with its built-in 4GB flash memory and SD card slot for external storage devices



    Category:
      Description

      GL840 Main unit specifications

      Item Description
      Model number GL840-M GL840-WV
      Number of analog input channels 20 channels in standard configuration, Expandable up to 200 channels
      Number of analog input terminals Up to 10 terminals (20 channels / terminal), standard config: 1
      Type of analog input terminal Multi-input type, Withstand-voltage type, Screwless terminal (option)
      Port for digital sensor 1 port for the sensor/input terminal/adapter of the GL100
      External input/
      output *1      		 Input *2 Trigger or Sampling (1 channel), Logic/Pulse (4 channels)
      Output *3 Alarm (4 channels)
      Sampling interval 10 ms to 1 hour (10ms to 50ms: voltage only) *4, External signal
      Time scale of waveform display 1 sec. to 24 hour /division
      Trigger,
      Alarm function      		 Trigger action Start or stop capturing data by the trigger
      Repeat action Off, On (auto rearmed)
      Trigger source Start: Off, Measured signal, Alarm, External, Clock, Week or Time
      Stop: Off, Measured signal, Alarm, External, Clock, Week or Time
      Condition Setting Combination: OR or AND
      Analog signal: Rising (High), Falling (Low), Window-in, Window-out
      Logic signal: Pattern (combination of each input signal in high or low)
      Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out
      Alarm output Outputs a signal when alarm condition occurs in the input signal *5
      Pulse input
      function      		 Rotation count
      (RPM) mode      		 Counts the number of pulses per sampling interval and converts to rpm
      (rotations per minute), Number of pulses for one rotation can be set to
      50, 500, 5000, 50k, 500k, 5M, 50M, 500M rpm/F.S. (rpm./Full Scale)
      Accumulating
      count mode      		 Accumulates the number of pulses from the start of measurement
      50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale)
      Instant count
      mode      		 Counts the number of pulses per sampling interval
      50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale)
      Maximum number of pulse inputs Maximum input frequency : 50kHz
      Maximum number of count : 50kC/sampling (16-bit counter)
      Calculation
      function      		 Between channels Addition, Subtraction, Multiplication, and Division for analog input
      Statistical Select two calculations from Average, Peak, Maximum, Minimum, RMS
      Search function Search for analog signal levels, values of logic or pulse or alarm point
      in captured data
      Interface to PC Ethernet (10 BASE-T/100 BASE-TX), USB (Hi-speed), WLAN (using B-568 option)
      Storage
      device      		 Internal Built-in 4GB Flash Memory *6
      External One SD card slot (Support SDHC memory card, up to 32GB) *7
      Saved contents Captured data, Setting conditions, Screen copy
      Back up recording data function Backup interval *8 Off, 1, 2, 6, 12, 24 hour(s)
      Backup file destination *8 SD memory card or FTP server
      Data format *8 GBD (binary) or CSV (test)
      Check-sum function (Verifies data file) OFF: Not adding check-sum code to data file.
      ON: Adding check-sum code to data file. Check-sum code is verified when replaying data on the GL unit or GL-Connection software.
      Capturing mode Mode: Normal, Ring, Relay
      Ring: Saves most recent data (Number of capturing data: 1000 to 2000000 points) *9
      Relay: Saves data to multiple files without losing data until dada capturing is stopped
      Replay data Replays captured data that was saved in the GL840 (in GBD or CSV format)
      Scaling (Engineering unit) function Measured value can be converted to specified engineering unit
      • Analog voltage: Converts using four reference points (gain, offset)
      • Temperature: Converts using two reference points (offset)
      • Pulse count: Converts using two reference points (gain)
      Action during data capture • Displaying past data (using dual display mode (Current + Past data))
      • Hot-swapping the SD memory card
      • Saving data in between cursors
      Display Size 7-inch TFT color LCD (WVGA: 800 x 480 dots)
      Language English, French, German, Chinese, Korean, Russian, Spanish, Japanese
      Information *10 Waveform in Y-T with digital values, Waveform only, Digital value, Digital values
      and statistics values
      Operating environment 0 to 45 ºC, 5 to 85 % RH (non condensed)
      (When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)
      Power source AC adapter 100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory)
      DC power 8.5 to 24 V DC (DC drive cable (option B-514) is required)
      Battery pack Mountable two battery packs (battery pack (option B-569): 7.2V DC, 2900mAh)
      Power consumption *11 Max. 38 VA
      External dimensions (W x D x H
      in mm, Excluding projections)      		 Approx. 246 x 161 x 58.2 (with the cover) Approx. 246 x 170.4 x 58.2 (with the cover)
      Weight *12 Approx. 1218 g (the cover is attached) Approx. 1244 g (the cover is attached)



      • Input/Output cable for GL (option B-513) is required to connect the signal.
      • Input signal;
        • Voltage range: Up to 24V (common ground)
        • Signal type: Voltage, Open collector, Contact (relay)
        • Threshold: Approx. + 2.5 V (Hysteresis: Approx. 0.5V (2.5V to 3V))
      • Output signal: Open collector (pull-up to 5V by 10kΩ resistor)
        <Maximum rating of the output transistor>

        • Voltage: Max. 30V,
        • Current: Max. 0.5A,
        • Collector dissipation: Max. 0.2W
      • Minimum interval varies by number of channels used.
      • Output port can be specified in each input channel.
      • The built-in Flash memory is available for units with serial numbers C604XXXX or later. Please contact your local representative for more information.
      • SD memory card cannot be used on the SD card slot while the wireless LAN unit (opton B-568) is used.
      • – When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
        – When there are meany number of active channels, the sampling time is fast, or the backup interval is long, it may take time to closing the data file after recording stops because the size of the data to be backed up becomes large.
        – When saving file to FTP server using wireless LAN connection, backup may fail depending on the communication condition.
        – Available sampling speed is the 100 ms or slower when using the CSV format.
        – When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.
      • Size of the capture data will be limited to 1/3 of available memory.
      • Display mode is switched every time the dedicated key is pressed. In magnified digital value mode, the
        displayed channel number can be specified. In the waveform display mode, the changing of the time scale will
        be effective from the point of the next displayed data
      • Rating under maximum power consumption using the AC adapter, with LCD display on, and battery pack(s)
        being charged.
      • Excludes AC adapter and battery pack.
