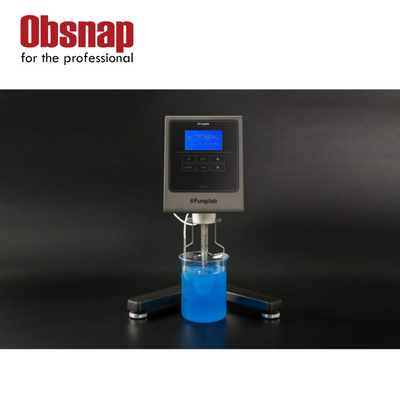

Fungilab – MASTER SERIES SMART

AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfils the next standards: These are the standards our units follow: BS: 6075, 5350.

Category: Viscometer

Description

Smart Series

Essential in investigation and quality control Laboratories.

SCREEN DATA
Selected speed	rpm
Selected spindle	SP
Viscosity reading	cP (mPa·s) or cSt
Percentatge of full scale	%
Sample temperature	ºC or ºF
Shear Rate (with coaxial spindles)	SR (s-1)
Shear Stress (with coaxial spindles)	SS (N/m2)
Density (introduced by the user)	g/cm3

VISCOSITY READING
Dynamic viscosity	cP or mPa·s
Kinematic viscosity	cSt
Units Converter	from SI to CGS

PROGRAM FEATURES
Time to torque: Ending of the test upon reaching a programmed torque
Time to stop: Ending of the test upon reaching a programmed time
10 working memories

OTHER MAIN FEATURES
AUTO-TEST with visual and resonant alarm
AUTO-RANGE function
Temperature Reading through PT100 probe
User-enabled viscosity and temperature calibration
6 language options
Port: USB
Datalogger: Posibility to tranfer data to a pendrive into Excel format
6 key Touch Keyboard

Spindles

AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350

BS: 6075, 5350
ISO:2555,1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Standard delivery

The equipement is supplied complete with standard spindles
- 4 spindles for L model
- 6 spindles for R and H models
Viscometer stand
Spindle protector
Temperature probe PT100
Carring case

TECHNICAL SPECIFICATIONS

Precision: +/- 1% full scale of range
Resolution: For a minus viscosity of 100 cP : 0.01 cP For a major viscosity of 1000 cP : 0.1 cP For a major viscosity of 5000 cP : 1.0 cP For a major viscosity of 10.000 cP : 5.0 cP For a major viscosity of 25.000 cP : 10.0 cP For a major viscosity of 50.000 cP : 25.0 cP For a major viscosity of 100.000 cP : 100.0 cP For a major viscosity of 1.000.000 cP : 1.000.0 cP
Repeatability: 0.2%
Temperature probe features: Temperature limits: -40ºC to 300ºC -40ºF to 572ºF Resolution: 0.1ºC / -17.722 ºF Precision: +/- 0.2ºC / +/- 17.666 ºF Type of probe: PT100
Supplied at 110-240VAC, 50/60 Hz.
Software: Fungilab Data Boss (optional): The Fungilab Data Boss software complies the FDA 21CFR PART 11 regulation

ACCESSORIES

APM : Small Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
APM/B : Small Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
LCP : Low Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
LCP/B : Low Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
HELDAL : Helix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)
THERMOSPHERE : Temperature control unit up to 300 ºC

CODE	MODEL	MEASURING RANGE (CP)	SPEED (R.P.M)	NUMBER OF SPEEDS
V210003	SMART L	*1 – 6.000.000	0.01 – 200	54
V210002	SMART R	25 – 40.000.000	0.01 – 200	54
V210001	SMART H	200 – 320.000.000	0.01 – 200	54

The viscosity range of the equipment is referenced between 0.01 and 100 rpm.

PPRFast spindle switch (push plug and release)

CODE	MODEL	MEASURING RANGE (CP)	SPEED (R.P.M)	NUMBER OF SPEEDS
V211003	SMART L + PPR	*1 – 6.000.000	0.01 – 200	54
V211002	SMART R + PPR	25 – 40.000.000	0.01 – 200	54
V211001	SMART H + PPR	200 – 320.000.000	0.01 – 200	54

The viscosity range of the equipment is referenced between 0.01 and 100 rpm.

Ranges

(L) Low viscosity model
(M) Medium viscosity model
(H) High viscosity model

Low viscosity:The minimum viscosity when using a ‘L’ range with standard spindles is 10cP. (*) For measurements <10cP, its recommended to use in conjunction with the low viscosity adaptor (LCP or LCP/B)
