DASQUA Professional Durable Steel Hardened Shock-Proof Dial Test Indicator With Calibration Certificate
Features
- With calibration certificate, tough shock-proof gearing,
- A robust frame body for exceptional stiffness,
- A white dial edge for easier reading, a ground contact point that has been hardened,
- A satin chrome finish on the case for longevity,
- and an accurate gear-driven design with a smooth movement.
Application
Dial test indicators resemble dial indicators very closely, however they have a measurement axis that is perpendicular to their axes. Dial and dial test indicators come in both analogue (mechanical dial) and electronic (digital display) varieties. Some electronic models electronically transport the data to a computer for storage and possible manipulation.
Unit:mm
| Code | Range | Graduation | Casing Diameter(A) | Length of Stylus(L) |
| 5221-1129 | 0.8 | 0.01 | φ30 | 16.5 |
| 5221-1140 | 0.8 | 0.01 | φ37.5 | 16.5 |
| 5221-3105 | 0.2 | 0.002 | φ30 | 16 |
Unit:mm
| Code | Range | Graduation | Casing Diameter(A) | Length of Stylus(L) |
| 5221-3106 | 0-0.03″ | 0.0005″ | 1.18″ | 0.62″ |
| 5222-6105 | 0-0.02″ | 0.0005″ | 1.5″ | 0.53″ |
Specifications
Product Name: Dial Test Indicator
Item Number: 5221-1129
Measuring Range: 0~8 mm / 0~003’’
Graduation: ±0.01 mm / 0.0005’’
Casing Diameter: 30mm
Length of Stylus: 16.5mm
Advantage Of DASQUA
• High quality material and precision machining process ensure product quality；
• A traceable QC system is worthy of your trust；
• Efficient warehouse and logistics management ensure your delivery time；
• A two-year warranty makes you without the worries behind；
Tips
Dial readings with three digits, such as 0-10-0, signify that the indicator has a balanced dial. Dial readings with two digits, such as 0-100, indicate that the dial has a continuous dial. Balanced dials are used to read the difference from a specific surface reference point. Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials. Optional features include jeweled bearings for high sensitivity and accuracy, a revolution counter to measure overall change, waterproof, dustproof, shockproof, a white or black face, and reverse reading for depth or bore gage measurement.

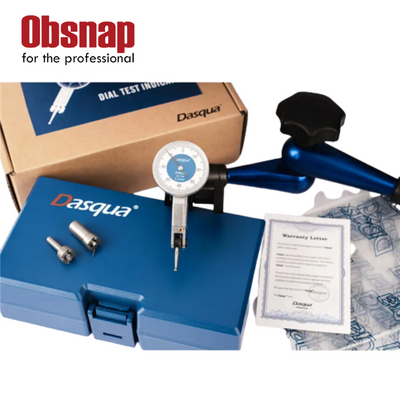

Package Content
1 x Dial Test Indicator
1 x Protective Case
1 x Warranty Letter
