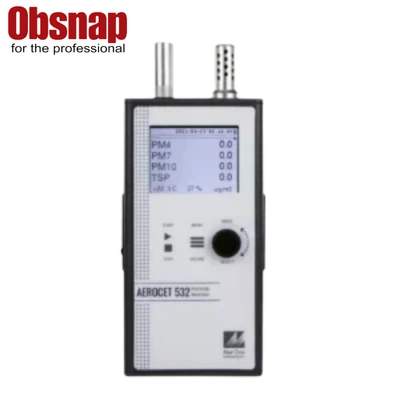

Aerocet 532 Handheld Particle Monitor

Specifications:

Mass Mode

Mass Concentration: PM1, PM2.5, PM4, PM7, PM10, and TSP

Ranges Sensitivity: 0.3µm

Concentration Limit: 0 – 1,000 µg/m3

Sample Time: 1, 2, 5, 10, 15, 30 or 60 minutes

Particle Count Mode

Concentration Limit: 0 – 3,000,000 particles per cubic foot (105,900 particles/L)

Sample Time: 1, 2, 5, 10, 15, 30 or 60 minutes

Size Accuracy Sensitivity: ± 10% to calibration aerosol

Flow Rate: 0.1 cfm (2.83 lpm)

Particle Size Ranges: 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 4.0 µm, 5.0 µm, 7.0 µm and 10 µm

Electrical

Light Source: Laser diode, 90 mW, 780 nm

Battery Pack: 7.4V Li-ion battery pack

AC Adapter/Charger: Li-ion battery charger, 100-240 VAC, 50/60Hz

Communications: USB-C Serial; With Optional Docking Station, RS-485, WiFi, & Ethernet

Battery Life: 8 hours continuous operation

Physical

Weight: 1.0 lb, 13.5oz (0.84 kg)

Size: Height = 8.8” (22.35 cm) Width = 3.75” (9.53 cm)

Thickness = 2.25” (5.72 cm) (without rubber boot)

Environmental

Operation Temperature: 0° to +50°C

Relative Humidity: < 95% (non-condensing)

Storage Temperature: 20° to +60°C
