SCANTECH COMPOSITE 3D SCANNER

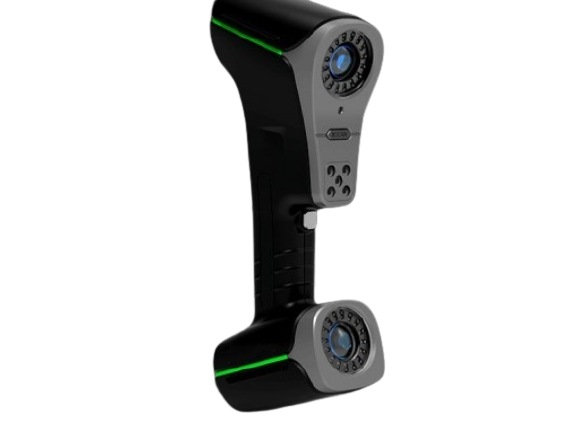

KScan-Magic 3D Scanner

KSCAN-Magic series composite 3D scanners open up the first introduction of infrared laser + blue laser technology with five standard working modes: global initiative infrared laser large area scanning, blue laser crosses fast scanning, blue parallel laser fine scanning, single blue laser deep hole scanning, built-in photogrammetry system.

KSCAN-Magic series have a revolutionary breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, scanning area, and depth of field greatly optimize the 3D measurement workflows and accelerate the product time-to-market. To obtain data on hard-to-reach or complex surfaces, KSCAN-Magic series can be equipped with portable CMM K-Probe, providing a comprehensive 3D digital solution for precision measurement.

Benefits of KSCAN-Magic Composite 3D Scanner

  • Innovative Infrared Laser

KSCAN-Magic innovatively adopts infrared laser scanning technology in worldwide. Its ultimate scanning area reaches 1440 mm × 860 mm, achieving precise wide range measurement with ease.

  • Effortlessly Efficiency

With 45 laser lines, KSCAN-Magic 3D scanner delivers ultra-fast scanning rate of 1,650,000 measurements/s. By flexibly switching the scanning modes, it satisfies different application needs, dramatically improving working efficiency.

  • Extreme-clear details

Under hyperfine scanning mode, Magic 3D scanner can accurately obtain complete data on the surface of complex objects, easily capturing every detail with resolution of 0.010 mm.

  • Single Laser Line Scanning

Single laser line scanning mode accurately and quickly captures 3D data of deep holes and dead angle positions.

  • Metrology-grade NDT Measuring

0.020 mm of scanning accuracy and 0.030 mm/m of volume accuracy; deliver ultra-high precision NDT for the aerospace industry.

  • No Fear of Harshness

KSCAN-Magic supports super-high work adaptability in harsh environment; realistically restores the precise 3D data of reflective and black surface.

  • Personalized Adjustment

Due to 925 mm depth of field, users can freely adjust the working distance based on the performance of details, efficiency and scanning area.

  • Massive Functions

Built-in photogrammetry system, intelligent edge detection, contact probing and pipe measurement fulfill diverse application needs.

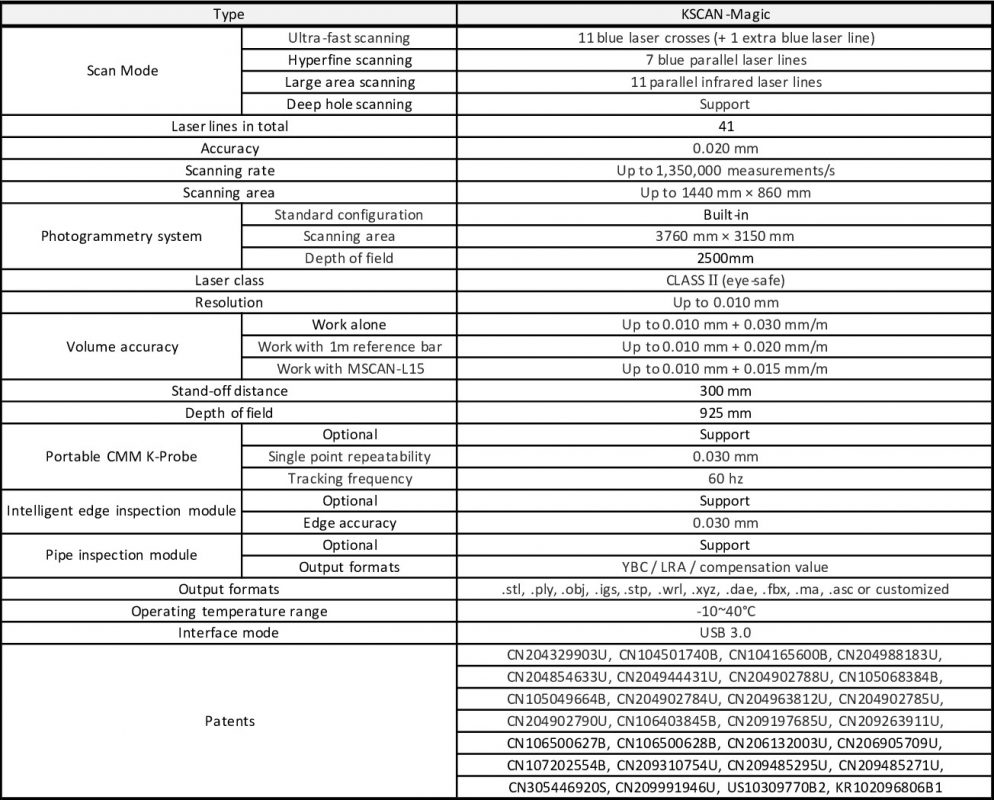

Tech Specs :

Application :

AEROSPACE

Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.

AUTOMOTIVE

3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.



MANUFACTURING

3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.

MOLD

High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.

ANTIQUE AND SCULPTURE

3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.

HEALTH CARE

Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.

ENERGY

3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility.

VR SHOWCASE

3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models.

EDUCATION AND RESEARCH

3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.

ENTERTAIMENT

3D laser scanners  perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds.

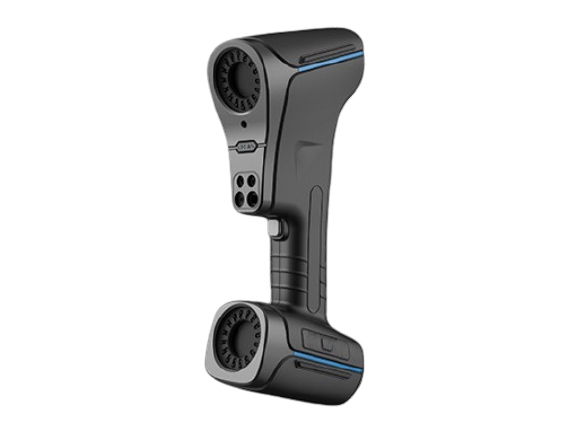

KScan-Magic 3D Scanner

KSCAN-Magic composite 3D scanner opens up the first introduction of infrared laser + blue laser technology with five standard working modes: global initiative infrared laser large area scanning, blue laser crosses fast scanning, blue parallel laser fine scanning, single blue laser deep hole scanning, built-in photogrammetry system.

KSCAN-Magic series have a revolutionary breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, scanning area, and depth of field greatly optimize the 3D measurement workflows and accelerate the product time-to-market. To obtain data on hard-to-reach or complex surfaces, KSCAN-Magic series can be equipped with portable CMM K-Probe, providing a comprehensive 3D digital solution for precision measurement.

Benefits of KSCAN-Magic Composite 3D Scanner

  • Innovative Infrared Laser

KSCAN-Magic innovatively adopts infrared laser scanning technology in worldwide. Its ultimate scanning area reaches 1440 mm × 860 mm, achieving precise wide range measurement with ease.

  • Effortlessly Efficiency

With 45 laser lines, KSCAN-Magic 3D scanner delivers ultra-fast scanning rate of 1,350,000 measurements/s. By flexibly switching the scanning modes, it satisfies different application needs, dramatically improving working efficiency.

  • Extreme-clear details

Under hyperfine scanning mode, Magic 3D scanner can accurately obtain complete data on the surface of complex objects, easily capturing every detail with resolution of 0.010 mm.

  • Single Laser Line Scanning

Single laser line scanning mode accurately and quickly captures 3D data of deep holes and dead angle positions.

  • Metrology-grade NDT Measuring

0.020 mm of scanning accuracy and 0.030 mm/m of volume accuracy; deliver ultra-high precision NDT for the aerospace industry.

  • No Fear of Harshness

KSCAN-Magic supports super-high work adaptability in harsh environment; realistically restores the precise 3D data of reflective and black surface.

  • Personalized Adjustment

Due to 925 mm depth of field, users can freely adjust the working distance based on the performance of details, efficiency and scanning area.

  • Massive Functions

Built-in photogrammetry system, intelligent edge detection, contact probing and pipe measurement fulfill diverse application needs.

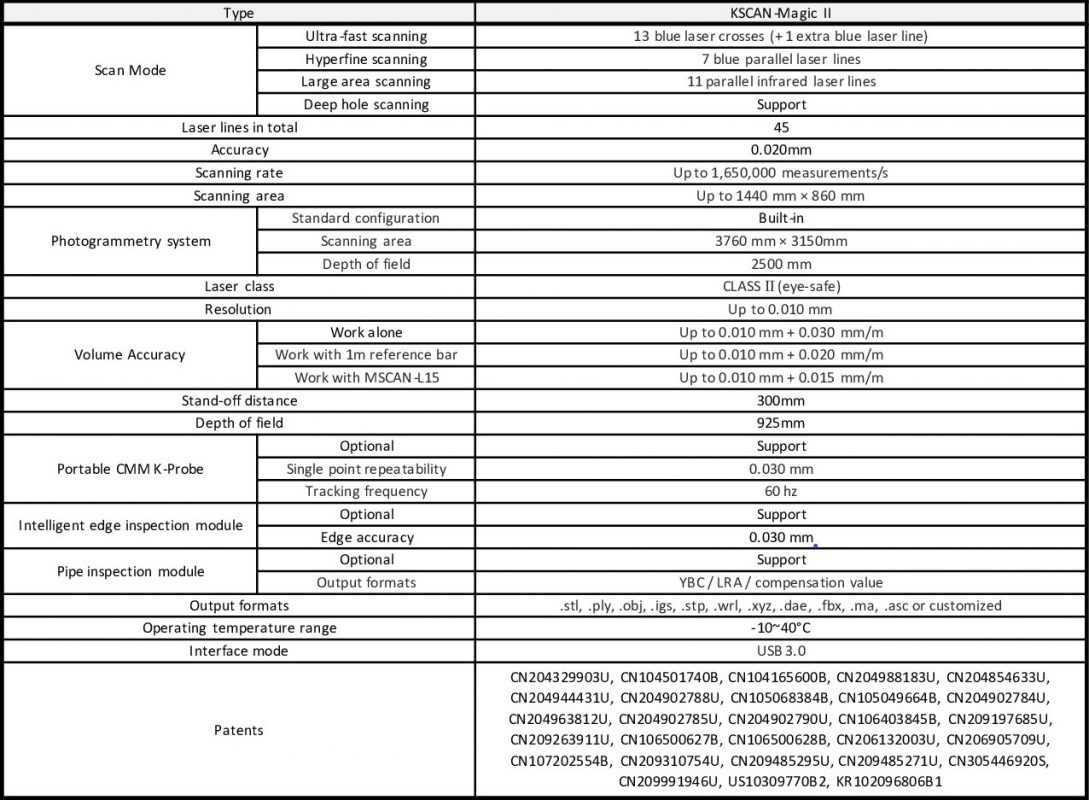

Tech Specs :

Application :

AEROSPACE

Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.

AUTOMOTIVE

3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.

MANUFACTURING

3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.

MOLD

High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.

ANTIQUE AND SCULPTURE

3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.

HEALTHCARE

Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.

SOLAR

3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility.

VR SHOWCASE

3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models.

EDUCATION AND RESEARCH

3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.

ENTERTAINMENT

3D laser scanners  perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds.

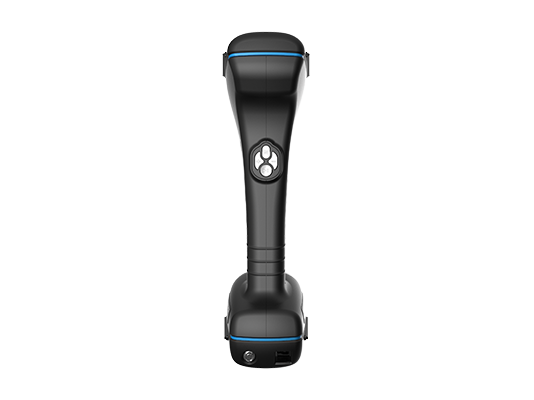

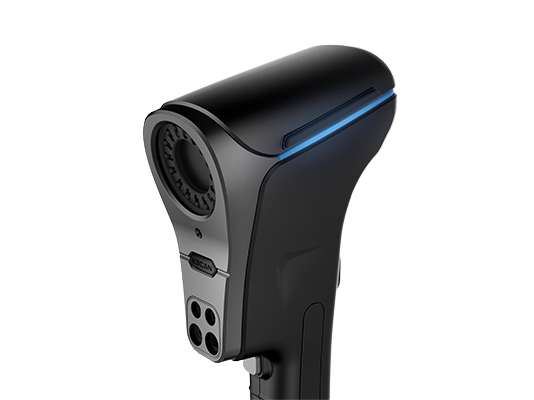

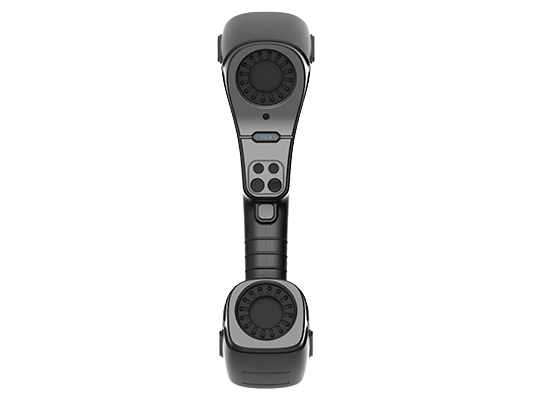

KSCAN20 3D Scanner

KSCAN20 3D scanner is a professional 3D scanner with the widest applications. It redefines what the portable 3D scanners are.

KSCAN20 3D scanner integrates built-in photogrammetry system and dual laser scan mode which are global initiative technologies.

Benefitting from red and blue laser scan mode, KSCAN20 delivers high efficiency by 650,000 measurements/s and ultra-high detail capturing with 10μm resolution and 0.020 mm accuracy. The built-in photogrammetry system greatly expands the scan area to 2500 mm × 3000 mm and improves volumetric accuracy to 0.020 mm/m.

The probing function of the KSCAN20 3D scanner and working with our 3D software ScanViewer conducts comprehensive and effective 3D digitization solutions for various industries.

Benefits of KSCAN20 3D Scanner

  • Unlimited Measuring Range

Excellent performance on scanning large-scale objects and small parts. Capture the 3D data of plane even coin realistically.

  • Built-in Photogrammetry

Volumetric accuracy is up to 0.020mm/m to bring more convenience for scanning large workpieces.

  • Probing Function

Portable CMM supports different working modes that make better performance in measuring holes, hidden points, features, assembly detection, etc.

  • Two Laser Sources in One Scanner

The red and blue laser scan modes integrate high flexibility and efficiency. Blue laser mode easily captures extreme details with 10μm resolution.

  • Faster Scanning Process

KSCAN20 optimizes each scanning procedure and greatly reduces the cost of device, time and labor.

  • Create the Easiest Pipe Inspection

ScanViewer includes professional pipe inspection function that can directly export YBC/LRA data to eliminate deviations of pipe bender.

  • User-friendly

Intelligent breathing light beam indicates the running status. Much easier to operate the scanner.

  • Flexible Combination

Fulfil measuring demands by freely matching with the probe, accurate reference bar, Helpers engineer kit, etc.

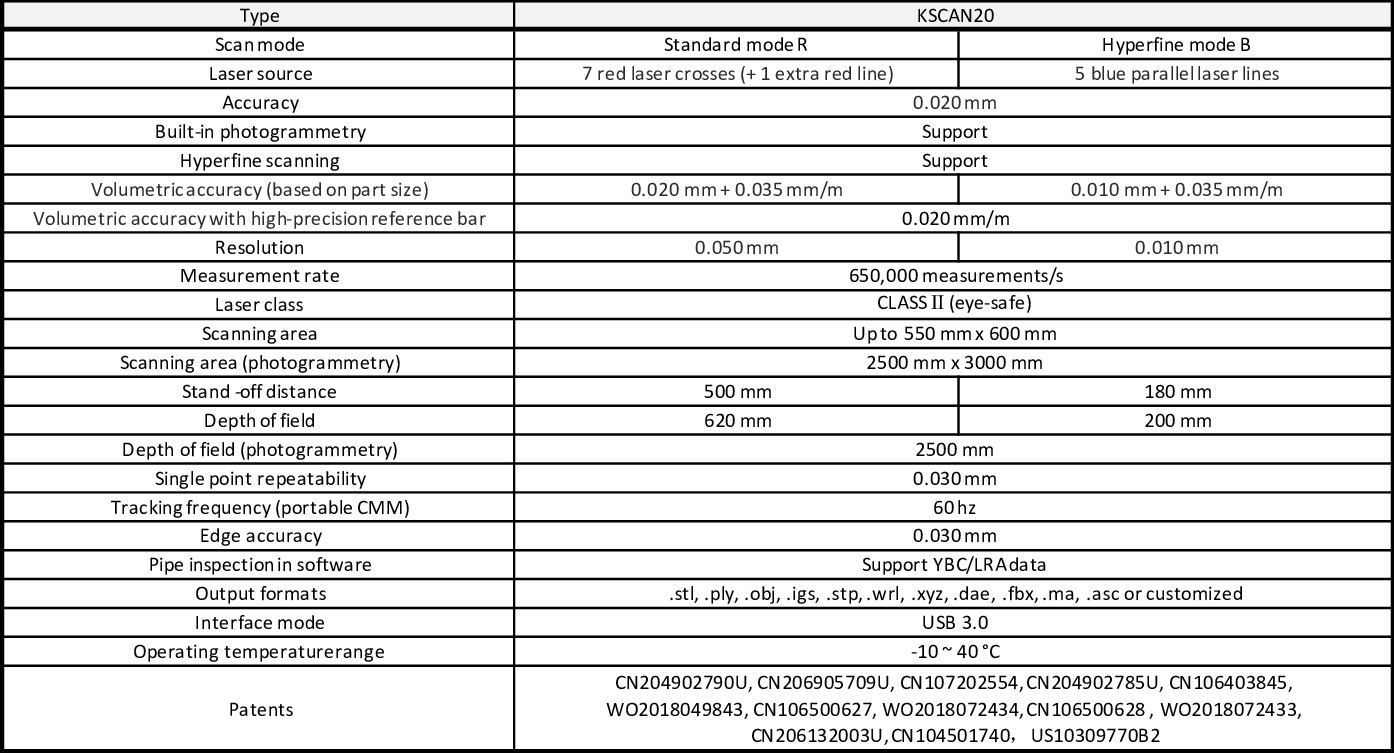

Tech Specs :

Application :

AEROSPACE

Delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.

AUTOMOTIVE

3D scanning technology realizes lower development cost, distinctive design and strict quality control for automakers to explore more valuable potential market.

MANUFACTURING

3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.

MOLD

High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.

ANTIQUE AND SCULPTURE

3D scanning widely applies to culture relic digitization, culture relic repair, digital museum.

HEALTH CARE

Provides complete and precise 3D solutions for surgeons, health care professionals, and medical equipment manufacturers.

SOLAR

3D scanners are characterized by high precision, fast measurement rate, capturing complete & accurate 3D data, strong environmental adaptability and flexibility

VR SHOWCASE

3D scanner obtain 3D point cloud from object to acquire accurate and high resolution 3D digital models

EDUCATION AND RESEARCH

3D scanning technology provides world leading 3D measurement equipment, digital 3D solutions and reliable training services for universities and research institutes.

ENTERTAINMENT

3D laser scanners  perform highly realistic 3D reconstruction capabilities in areas such as reproducing real-world objects & characters, constructing virtual scenes, 3D animation production and designing fantastic 3D worlds
